Qigong Best Selling Automatic Suspension Sliding Gate Remote Control Aluminum Factory School Designs

Main Features

• The electric gate adopts Aluminum 6063-T5 material with elegant appearance and compact structure.
• The gate is suspension sliding without any rails, it's very easy and simple for installation and maintenance.
• Anti-Bumping Function: In process of gate closing, if infrared detector sensed people or obstacles, the sliding gate will immediately stop to assure of security.
• Anti-Pinching Function: In process of gate travelling, if people or obstacles contact safety airbag, and pressure-wave sensor will transmit signal to master control board to make the gate stop sliding.
• Anti-Climb-Over Alarming: If infrared detector sensed anybody to climb over gate, alarm in control cabinet will auto turn on, and the alarm can be turned off by stop-button or open-button of controller.
• If any emergency happened, you can press Emergent ON/OFF button to cut off power and make the working gate stop immediately to assure of safety.
• Once electric motor temperature exceeds 120 degree or the gate is working for a limited time, then the motor will auto stop working for protection and prolong its life time.
• The gate is with desktop-controller and handheld-controller for remote control, and during the time of maintenance or power failure, gate clutch can be released and then the gate can be controlled manually.
• The gate is with leakage protection to protect over voltage or current in control system to connect ground.
• The gate works smoothly, stable and quiet with high security, low noise, low failure rate and long service time.
• The gate is used to circumstances of -30°c to +70°c of high or low temperature, wind, rain, ice, snow, slope, over railway or track and even some other tough conditions.

Gate Automation System

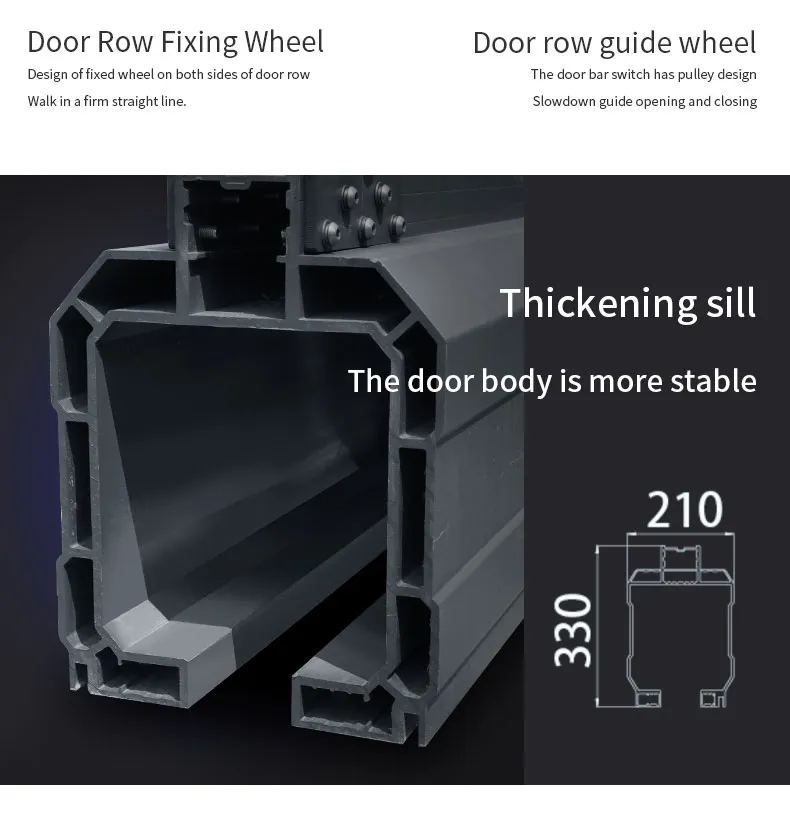

The electric gate is with an advanced automation system which includes our patent horizontal motor and two pieces of carriage wheel group built in the base beam (sliding track), industrial drive chain, intelligent frared sensors, master control box and remote controllers. It's with outstanding features of anti-bumping, anti-crushing, anti-climbing-over, working stable, low noise, thermal protection, leakage protection and so on.

Motor Power: 400W
Voltage: AC220V±10% 50Hz (AC110V by customized)
Revolution Speed: 1350r/Min
Sliding Speed: 18-20 meters per minute

Electric Capacity: 18uF/450VAC

Working Noise: Less than 65db

The Best Environment Temperature:  -30°c to 70°c

Thermal Protection Temperature: 120°c
