Exterior Door, Industrial Dor Locks/Sliding Door/Door Bell/Lift Door/Door Handles and Locks, Door Industries, Industrial Door Seal

Features:

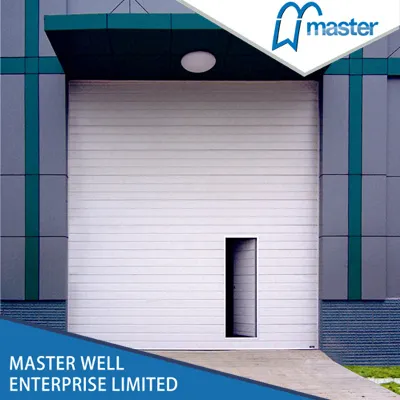

1. Opening way: overhead sliding sectional door
2. Panel thickness:40 mm
3. color:normal color is white,any other color customized as customers' request
4. size:width 430mm-550mm,adjusted
5. max length 12M,adjusted
6. All hardwares sprayed galvanized steel to prevent rust

7. Motor device:

   1)motor with the automatic lighting delay function,which will ensure you have enough time to leave

   2)motor track

8. Control switch:automatic switch, remote switch and manual switch
9. Certificate approved:CE

Panel Design:

1.Finger protection design

2.Glazing(window) is avaliable ,with different ABS window optional on the panel

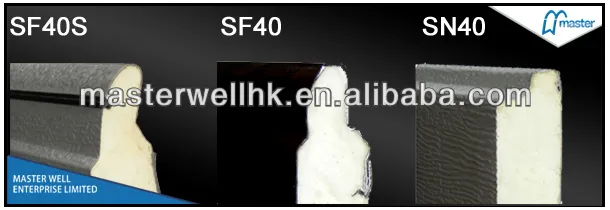

3.Panel skin:woodgrain/orange peel/flush/fold with rectangle or horizontal line as your order

4.Below is the panel drawing

HARDWARE:

1) Standard Single Track (SST): 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm;

2) Standard Double Track (SDT): 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm;

3) L Profile support with Single Track (LST): 1 pair vertical track, 1 pair horizontal track with L profile support, needs min headroom 350mm;

4) L Profile support with Double Track (LDT): 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, with L profile support, needs min headroom 200mm

5) L Profile support with Double Track & ABS curve (SLDT) : 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, L profile with ABS curve, needs min headroom 200mm

6) Emergency lock for manual operation when power off

7) Torsion spring, or Tension spring

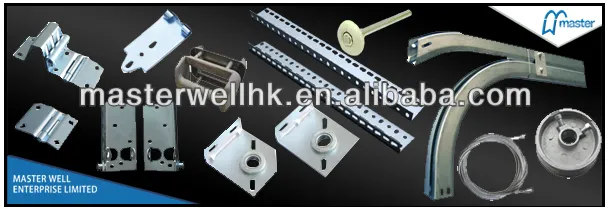

8) Hinges, Top roller brackets, Bottom roller brackets, Rollers, Cable drum with cable, Central bracket with bearing, Mounting brackets and other accessories for a complete set



ABOUT MASTER:

Master Well Enterprise Limited, is a truly corporation specializing in Doors & Parking Automatic System. Relying on our excellence of business performance and R & D, we have enjoyed globally recognized reputation in successfully providing quality products at a competitive price and professional technical service to a wide range of clients worldwide.
