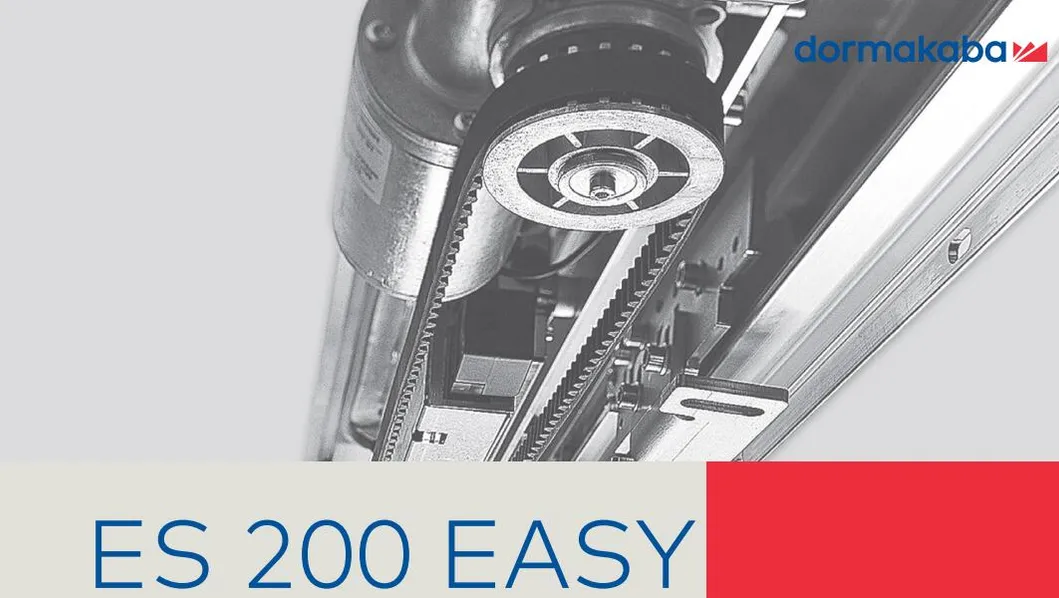

Dorma ES200 Easy Automatic Sliding Door Kit
The new ES 200 Easy in the attractive DORMA design stands for simple automation of sliding door units in all areas of application. It is the innovative drive system for door units up to 2 x 100 kg, is of modular construction with world-wide tried and trusted electronics and new mechanics comprising ......
Send Inquiry
Product Description

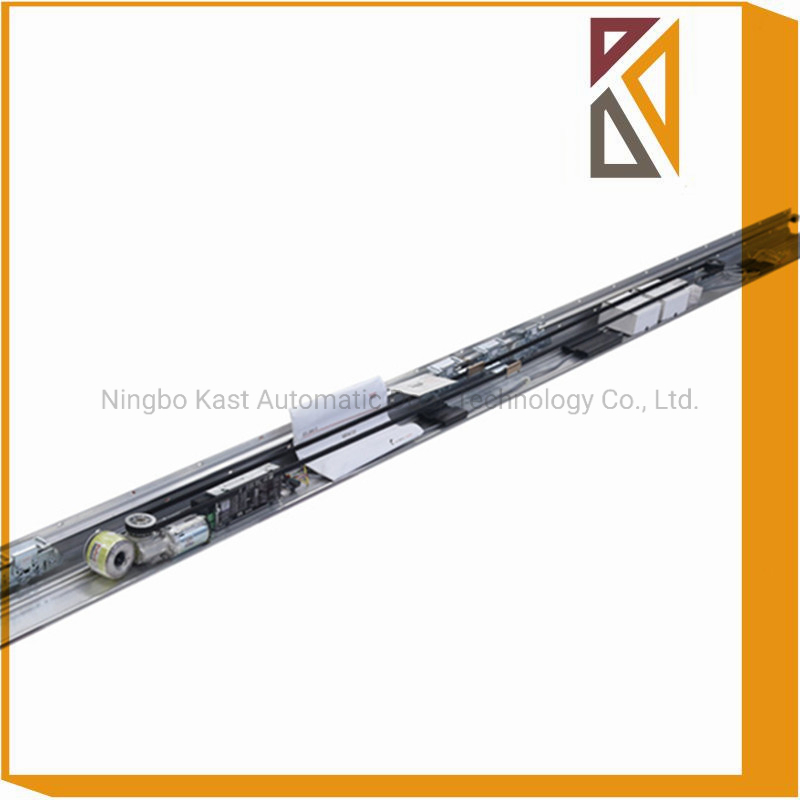

The new ES 200 Easy in the attractive DORMA design stands for simple automation of sliding door units in all areas of application. It is the innovative drive system for door units up to 2 x 100 kg, is of modular construction with world-wide tried and trusted electronics and new mechanics comprising only a few components and can be used for both 100 and 150 mm height. The prefabricated mini drive unit is also impressive; it is tested industrially with all the necessary electrical and electronic components.

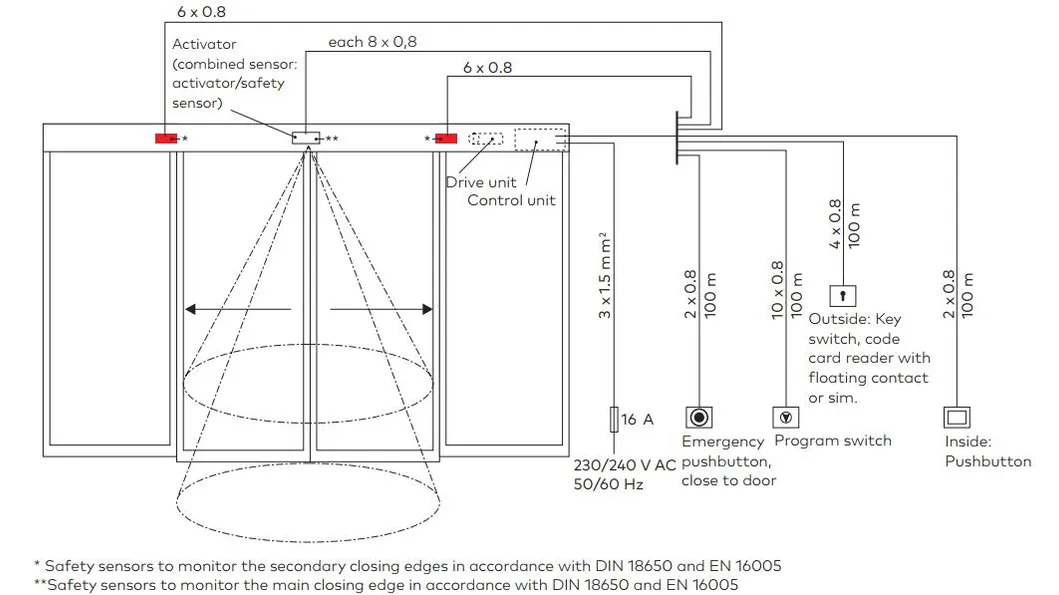

Wire Diagram,
Dorma ES200 control unit provide terminal for light barrier, emergency off pushbutton, programm switch, key switch, code card reader, radars, Hand programmer,etc.
Door Parameter,
Technical Datas,

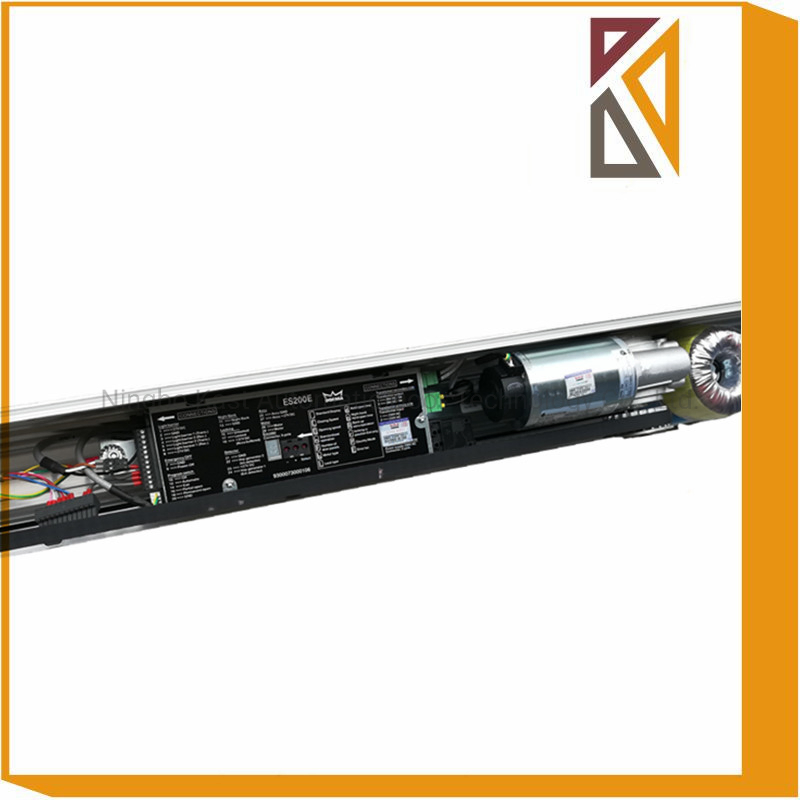

Control Unit,
Wire Diagram,
Dorma ES200 control unit provide terminal for light barrier, emergency off pushbutton, programm switch, key switch, code card reader, radars, Hand programmer,etc.
Door Parameter,
| 1-panel sliding door - Clear passage width - Door panel weight, max. | LW 700 - 3000 mm 1x100KG |
| 2-panels sliding door - Clear passage width - Door panel weight, max. | LW 800 - 3000 mm 2x100KG |
Technical Datas,
| Height | 100 and 150 mm |
| Overall depth | 180 mm |
| Opening and closing force | Max.150N |
| Opening speed (incremental setting) | 10 - 50 cm/s |
| Closing speed (incremental setting) | 10 - 40 cm/s |
| Hold-open time | 0.5 - 30 sec. |
| Mains voltage, frequency | 230 V, 50/60 Hz |
| Power consumption | 180 W |
| International protection | IP 20 |
| Tested according to low-voltage directives | yes |
| Manufacture according to ISO 9001:2000 | yes |
Control Unit,
| Microprocessor controller | yes |
| Functional programs - Off - Automatic - Permanent open - Partial opening - Exit only - Night-bank switch | yes yes yes yes yes yes |
| Emergency off | yes |
| Self-learning | yes |
| Automatic reversing | yes |
| Connection for bistable electro-mechanical locking | yes |
| Connection for light barrier(max 2 pairs) | yes |
| Setting of all basic parameters via integrated display and pushbuttons | yes |
| Emergency opening or closing (with use of battery pack) | yes |
| 24 V output for external loads | yes |
| Read-out error memory with error codes | yes |
| DCW bus interface | yes |
