Automatic Sliding Door with Dunker Motor, Sliding Door Operator

High level intelligent sliding door operator,compete with name brand such as KABA,NABCO,DORMA,GEZE etc.it develops from these name brands advantages
Electric connection to customer- 230 V 10 %, 50 Hz (13 A)
supplied mains socket 115 V 10 %, 60 Hz (15 A)
Mains cable is included
Power consumption 100 W
Max. driving power (static) 150 N
In the event of a power failure, the emergency battery guarantees
full operation for 15...30 min.
Ambient temperature -15...+50 oC
(if the installation remains permanently connected to the mains
supply)
The unit may only be used max. relative
in dry rooms humidity 65 %
Protection rating IP 23

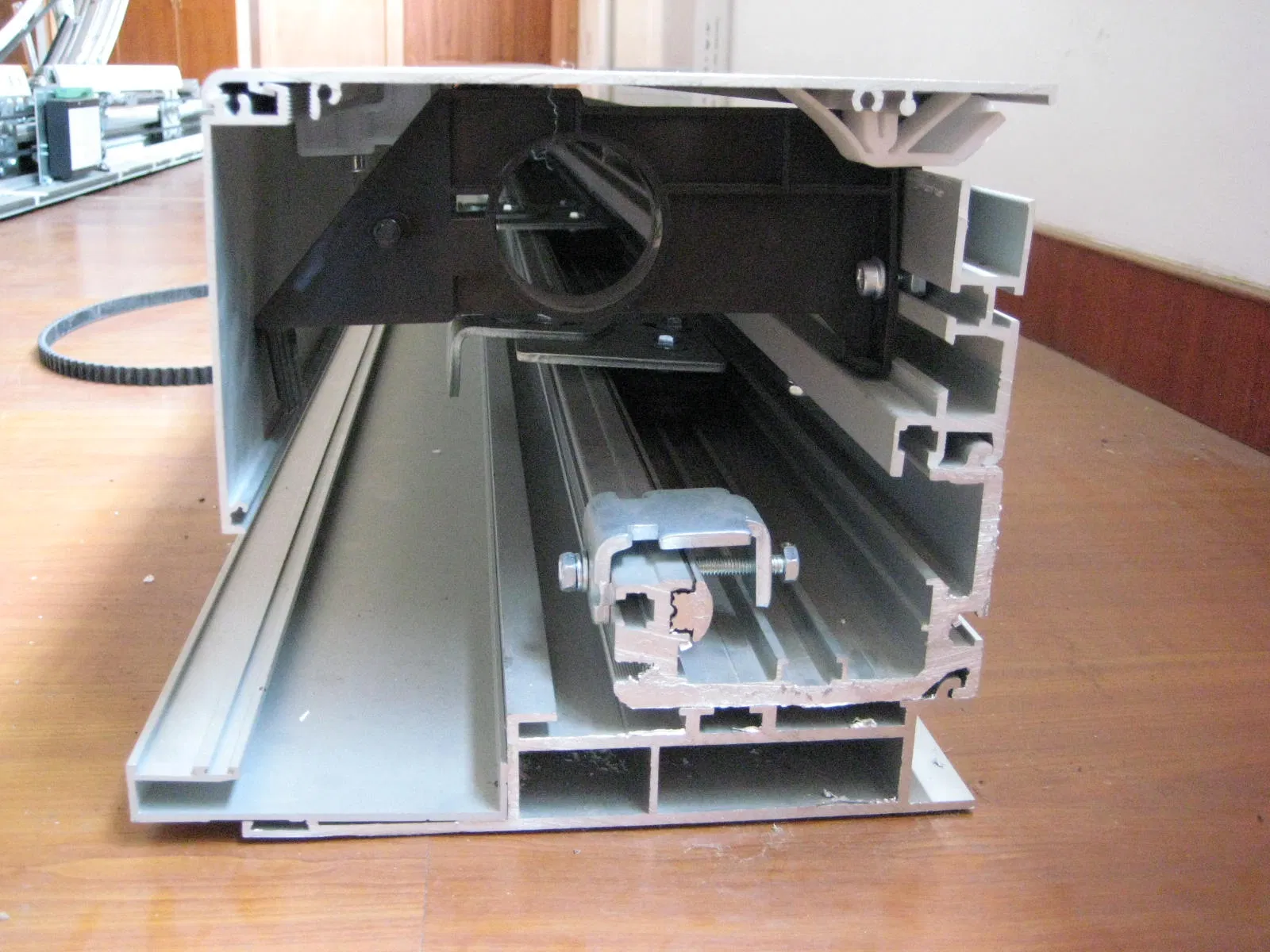

Track image



Packing:(Standard with 2pcs Germany Perpperl sensor ,1pc programmer,without cover,with 4.2M track)

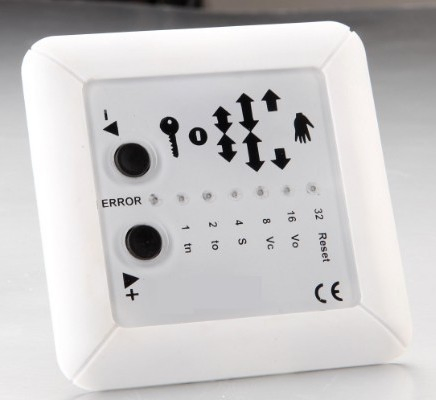

Programmer




Optional :Cover;Battery backup;Electric lock;Glass clamp,hand sensor,foot sensor,switch etc...
