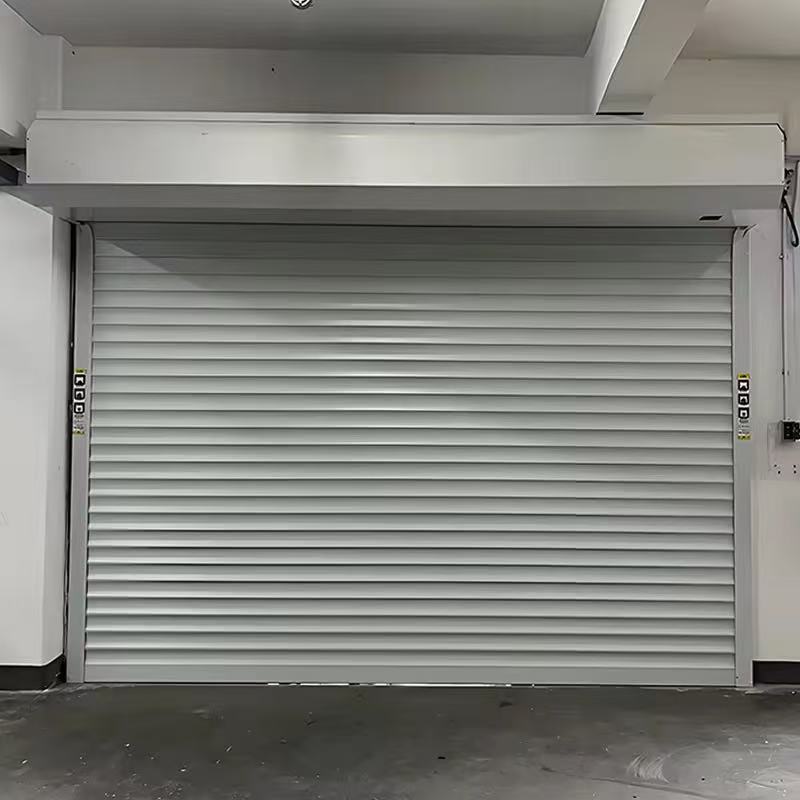

Will a fire-rated rolling shutter make my site safer without slowing work?

The morning we ran a surprise drill, the counter shutter eased down with a soft chime, staff kept serving, and nobody flinched. That was my reminder that safety should not feel like a stop sign. When clients ask how to guard a pass-through or corridor without choking workflow, I reach for a Fire-Rated Rolling Shutter—the kind I began specifying after a retrofit where FANSI quietly made the hard parts simple, from clean submittals to a smooth drop test. This piece shares where these shutters genuinely help and how to choose one that fits your site, not the other way around.

Where do fire-rated shutters actually solve problems on a busy site?

• Kitchen pass-throughs and concession counters where open flames meet public areas.
• Mall tenant separations that need a compact fire barrier after hours without bulky swing doors.
• Warehouse corridors that cut through production lines and require a rated closure only in alarm.
• Data-center support rooms and battery storage where heat and smoke containment buy crucial minutes.
• Hospital and school service windows that must stay open all day yet close reliably during an event.

Which rating do I really need for my opening?

In the field, the shutter rating follows the wall rating and the authority having jurisdiction. I confirm the fire barrier design with the architect and the inspector, then match the shutter listing. Typical selections cover 45, 60, 90, and 180 minutes. When the wall is two hours, I often see a 90-minute shutter, but I always verify submittals before fabrication.

I coordinate early with the code team. Many jurisdictions reference NFPA 80 for inspection and testing and require documented annual drop tests. For smoke control, I ask about air-leakage requirements and select a smoke-rated package when needed. Final acceptance rests with the local inspector, so I send them the listing sheet up front.

How do these shutters talk to the fire alarm and building systems?

• Alarm release closes the shutter on a signal while preserving local safety edges and photo eyes.
• Fusible links can act as a thermal backup; I keep them accessible for reset and testing.
• Fail-safe design matters; if power is lost, the assembly should still close under controlled speed.
• Pre-close warning with horn/strobe protects staff near the opening during an event.
• For frequent cycling, I specify a duty-rated motor and a manual chain hoist for emergency override.

Will a fire shutter block egress when people need out?

I never plan to use a rolling shutter as an exit path. I provide an adjacent rated swing door for egress and add signage so the team does not wait under a closing curtain. Safety edges, photo eyes, and controlled descent help, but a dedicated exit keeps occupants moving in the right direction.

How do I keep smoke out of adjacent spaces during a real event?

When owners want extra protection for merchandise and electronics, I add a smoke-control package with perimeter seals and a listed leakage rating. It reduces migration into sales floors and adjacent suites, and insurers often view it favorably. I confirm any local smoke-control provisions with the design team before ordering.

What drives performance choices like motors, finishes, and wind resistance?

• Daily cycles and duty class determine motor selection and gearbox life.
• Wet or washdown areas benefit from higher enclosure ratings and stainless components.
• Coastal or windy sites may require wind locks and heavier-gauge slats.
• Finishes range from galvanized to powder coat; I match traffic and cleaning routines.

Which mistakes delay inspections and how do I avoid them?

Can I retrofit an older counter shutter without ripping out finishes?

I measure the clear opening, hood space, and guide backing. Many modern assemblies fit legacy openings with adapter plates. If I need smoke performance or a higher rating, I confirm wall construction first so the listing remains valid after retrofit.

What really moves the budget number on a fire-rated shutter package?

• Opening size and rating add steel and time.
• Smoke package, safety edges, and controls add parts and commissioning steps.
• Custom colors and stainless options push material cost and lead time.
• Electrical scope and alarm integration vary by building and contractor responsibilities.

Why do I trust FANSI when timelines are tight?

I value predictable submittals, responsive tech support, and field-savvy details. Backed by a rigorous quality management approach, the team supplies the certificates that owners and inspectors ask for and supports on-site acceptance. Strong after-sales help keeps our callbacks down, and the repeat business rate around 88% tells me the product is doing its job. Beyond fire-rated shutters, I also lean on their broader industrial door lines, including sectional and overhead lifting models, so a mixed facility can standardize parts and service.

What do I check before I place the order?

1. Wall rating, opening size, and lintel structure verified on site.
2. Alarm interface and electrician scope confirmed in writing.
3. Clearances for hood, guides, and maintenance access approved on drawings.
4. Finish and color schedule aligned with adjacent trades.
5. Drop-test, training, and annual inspection plan added to the closeout list.

Would you like drawings, samples, or a same-day budget number?

If you need a quick takeoff, a formal quote, or shop drawings matched to your opening, contact us and tell me your rough opening size, wall rating, and whether a smoke package is required. With a thorough quality mindset, we can provide the documentation your inspector expects and support your acceptance walk. If you are also reviewing options for industrial or lifting doors, I can bundle those so you have one coordinated submittal set and one service plan.
