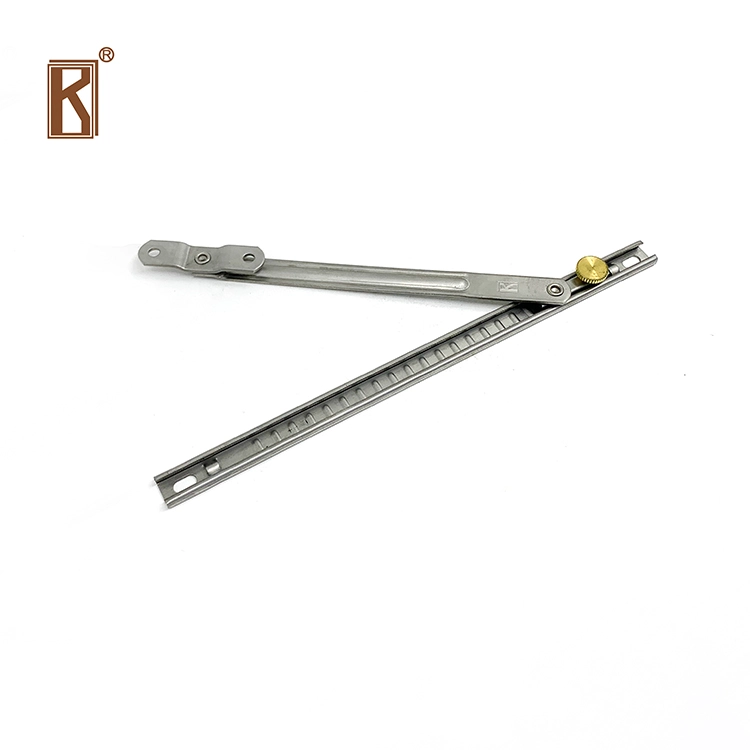

When should you replace your old window restrictor with a Kingbo stainless steel friction stay adjustable limiter

Many property owners overlook window hardware until a failure occurs. The truth is that an aging window restrictor compromises security, energy efficiency, and even occupant safety. Knowing the precise moment to upgrade to a Window Limiter Stainless Steel Friction Stay Adjustable can prevent costly damage and liability risks. Kingbo, a trusted name in architectural hardware, provides engineering-grade solutions that outperform conventional plastic or basic metal restrictors in every measurable way.

Key signs your current restrictor needs immediate replacement

Why the Kingbo Window Limiter Stainless Steel Friction Stay Adjustable is a superior choice

Unlike old restrictors that use fixed opening slots or fragile nylon blocks, the Kingbo adjustable friction stay allows fine-tuning of resistance from 50N to 200N. This covers both lightweight aluminum frames and heavy composite sashes. The stainless steel body eliminates corrosion from rain, humidity, and coastal salt air. Furthermore, the window limiter function meets EN 13126-5 standards, meaning it restricts opening to safe gaps—typically under 100mm—while still allowing emergency egress when fully released.

Window Limiter Stainless Steel Friction Stay Adjustable FAQ

1. How many years does a standard Kingbo Window Limiter Stainless Steel Friction Stay Adjustable last before needing replacement?

A genuine Kingbo Window Limiter Stainless Steel Friction Stay Adjustable operates reliably for over 20,000 full open-close cycles under normal residential use, equating to roughly 15–20 years. For commercial applications with daily high-frequency operation (schools, hotels), the recommended inspection interval is every 5 years, with replacement at year 10. The superior passivated stainless steel surface resists pitting corrosion even after salt spray testing of 480 hours, whereas standard steel restrictors fail within 200 hours. Always verify the friction torque annually using a digital force gauge; if the sliding resistance drops below 40N or exceeds 250N, adjustment or replacement is advised.

2. Can I mix a Kingbo Window Limiter Stainless Steel Friction Stay Adjustable with my existing window profile that has non-standard groove dimensions?

Yes, but careful measurement is required. The Kingbo Window Limiter Stainless Steel Friction Stay Adjustable comes with two universal mounting options: a 13mm wide channel for European steel reinforcing profiles and a 16mm adapter plate for aluminum tilt-and-turn systems. If your old restrictor was riveted or screwed directly into PVC without a channel, use the included self-tapping stainless steel screws with a 4.2mm pilot hole. For non-standard grooves exceeding 22mm in depth, Kingbo supplies 4mm thick nylon packing shims to eliminate play. It is strongly recommended to order a sample unit first and perform a dry fit. Contact Kingbo technical support for a profile compatibility drawing.

3. How does the adjustable friction mechanism inside a Window Limiter Stainless Steel Friction Stay Adjustable differ from a simple fixed restrictor strap?

A fixed restrictor uses a physical stop—a metal peg or plastic block—that halts the window at a predetermined angle. Over time, the impact force damages the stop or the frame. In contrast, the Kingbo Window Limiter Stainless Steel Friction Stay Adjustable incorporates a stack of wave spring washers and phosphor-bronze sliding shoes inside the stay channel. By tightening or loosening the central adjustment screw (accessible with a 2.5mm hex key), you vary the clamping pressure on the sliding shoes. This creates continuous, smooth resistance without any impact shock. The adjustability allows you to compensate for wear: as the shoes gradually wear after 10,000 cycles, a ¼ turn of the screw restores original friction. A fixed restrictor cannot be re-tensioned and must be replaced entirely once loose.

Step-by-step replacement guide

1. Remove old restrictor – Drill out rivets or unscrew fasteners. Clean all debris from the frame channel.

2. Measure stack height – Ensure the stainless steel stay fits within the existing rebate depth.

3. Mark drill points – Use the Kingbo supplied template for accurate alignment.

4. Pre-drill pilot holes – Use a 3.5mm HSS bit to avoid splitting PVC or wood.

5. Mount the friction stay – Attach the frame plate first, then the sash plate.

6. Adjust initial friction – Set resistance to 80N for standard double-glazed units.

7. Test movement – The window should hold position at 15°, 30°, and 75° without drifting.

Final professional recommendation

If your current window restrictor shows any rust, looseness, or if you cannot remember when it was installed, do not wait for a failure. The Kingbo Window Limiter Stainless Steel Friction Stay Adjustable delivers safety, adjustability, and decades of service. It satisfies building codes for child safety (ASTM F2090) and forced entry resistance.

Contact us today at Kingbo hardware support to request a free sizing guide or to order a sample Window Limiter Stainless Steel Friction Stay Adjustable. Email [email protected] or visit our online catalog for technical drawings and installation videos. Secure every window with professional-grade hardware now.
