What are the common installation challenges with open-out tilt and turn aluminium casement windows

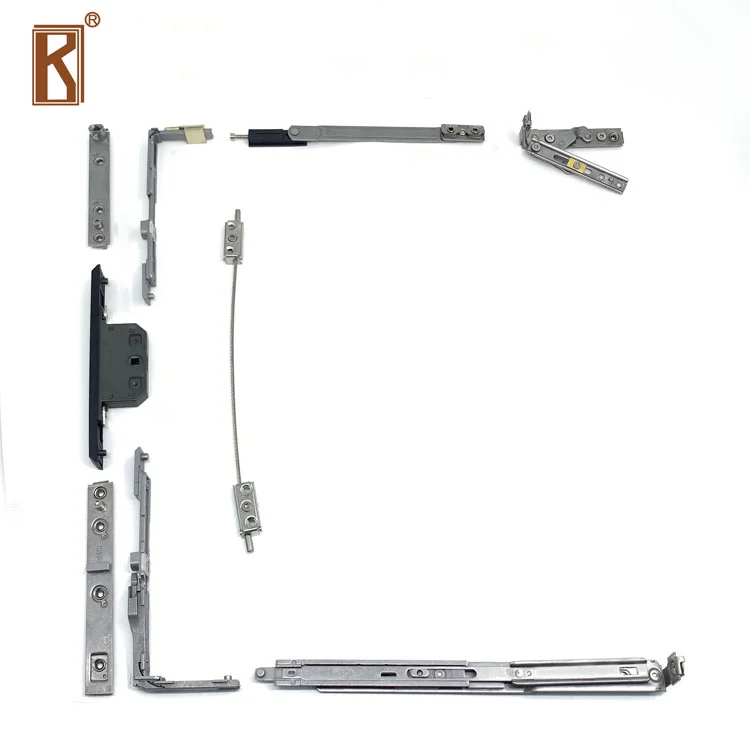

When upgrading to modern fenestration solutions, the Open-out Tilt and Turn System for Aluminium Casement Window stands out for its functionality and sleek aesthetics. However, even the most advanced hardware can fail to perform if installation errors occur. At Kingbo, we have observed that while these systems offer superior ventilation and security, their installation demands precision. Unlike traditional window types, the open-out mechanism involves complex hinge adjustments and frame alignments that, if mishandled, can lead to long-term operational issues.

Understanding the Core Installation Complexities

The primary difficulty lies in balancing the dual-action mechanism. Installers must ensure that the sash can tilt inward from the top for ventilation while also swinging open fully like a door, all while opening outward. This requires a perfect synergy between the aluminium frame structure and the European-style hardware. Below is a breakdown of the most frequent installation challenges encountered on site.

Precision in Structural Mounting

Aluminium is a material that expands and contracts with temperature changes. A common oversight is failing to account for this thermal movement. When installing an Open-out Tilt and Turn System for Aluminium Casement Window, the fixing brackets must be installed with slip tracks rather than rigid anchors. Kingbo emphasizes that rigid fixing often leads to frame distortion in summer heat or compression cracks in winter. Installers must also verify that the wall opening is perfectly plumb; any deviation greater than 3 millimeters typically necessitates structural remediation before the window is placed.

The Importance of Glazing Weight Management

For open-out units, the weight of the insulated glass unit (IGU) directly impacts the operational longevity. A challenge frequently underestimated is the selection of appropriate hinge capacity. If the glazing is too heavy for the specified hinges, the sash will drop over time, causing friction against the frame and eventual failure of the tilt mechanism. Kingbo recommends calculating the exact weight of the IGU before installation and matching it to hinges rated for at least 20% above that capacity to ensure smooth operation over decades.

FAQ: Common Questions About Installation

What is the most critical step before installing an open-out tilt and turn aluminium casement window to ensure water tightness?
The most critical step is the preparation of the thermal break and the drainage system. Unlike inward-opening windows, open-out systems rely on external weather seals to deflect water. Before installation, the installer must verify that the drainage channels at the bottom of the frame are unobstructed and that the corner connectors are sealed with factory-applied corner gaskets or silicone. If these channels are blocked by foam insulation or misaligned sills during installation, water will pool inside the frame track rather than draining outward, leading to hydrostatic pressure and eventual leakage into the wall cavity. Kingbo pre-assembles all corner connections in controlled conditions to eliminate this field-installation risk.

How do you troubleshoot a handle that feels stiff or does not engage properly after mounting?
Stiff handle operation usually indicates that the sash is not perfectly aligned with the locking points on the frame, or that the profile has been twisted during fixing. To troubleshoot, first release the sash and check the engagement of the tilt-before-turn safety mechanism. If the sash is twisted, the fixings must be loosened, and the frame must be re-shimmed to relieve the torsion. Secondly, verify that the profile has not been deformed by over-tightening the mounting screws. At Kingbo, we recommend using torque-limited screwdrivers for the final fix. If the issue persists, the gearbox within the hardware may have been damaged by forced operation during an unaligned state, requiring a full hardware cassette replacement.

What are the specific sealing requirements for the installation interface between an aluminium frame and a masonry wall?
The sealing requirements for an open-out system are more demanding than for inward-opening units because the external environment exerts constant pressure on the seals. The interface must utilize a three-tiered sealing approach: an internal air seal (vapor barrier) to prevent interior humidity from condensing inside the wall, an insulation layer (expanding foam specifically formulated for aluminium to prevent corrosion), and an external water seal (weather-resistant membrane). A common installation challenge is the use of standard polyurethane foam, which can degrade when in contact with aluminium profiles over time. Kingbo supplies specific accessory profiles and sealing tapes that create a capillary break, ensuring that the installation interface outlasts the building structure itself.

Conclusion

Successfully navigating the installation challenges of the Open-out Tilt and Turn System for Aluminium Casement Window requires more than just basic carpentry skills; it demands an understanding of material science, hardware integration, and structural tolerances. From managing thermal expansion to ensuring flawless drainage, every detail matters for the longevity and security of the unit.

For architects, contractors, and homeowners seeking peace of mind, partnering with a specialist ensures that these complexities are handled with precision. Kingbo provides not only premium hardware and profile solutions but also technical support to guarantee that your installation is executed flawlessly.

Contact us today to discuss your project requirements or to request a technical consultation on our advanced aluminium window systems. Let Kingbo help you achieve the perfect balance of performance and aesthetics.
