How to Properly Size and Frame an Opening for a Pivot Door
2026-01-23

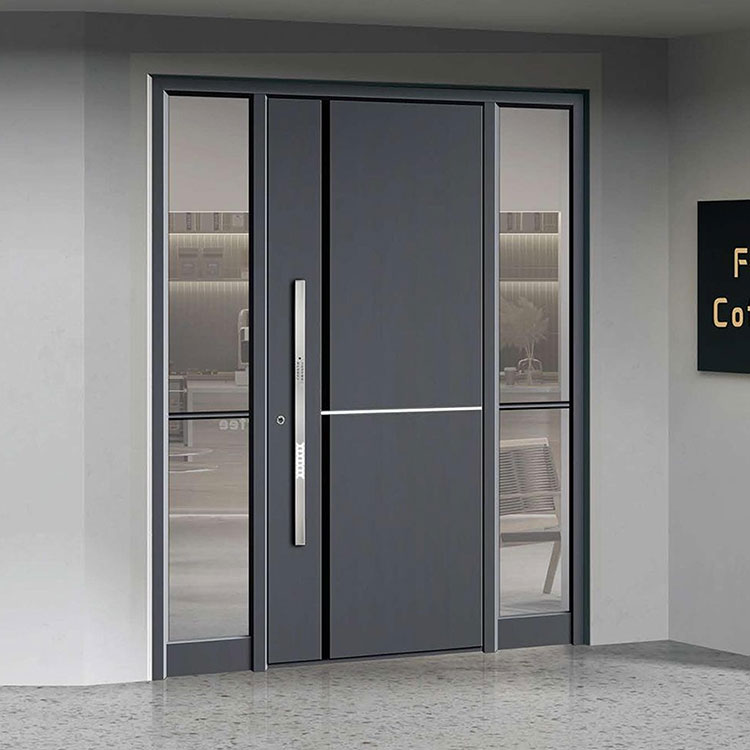

Installing a stunning Pivot Door is a transformative upgrade for any modern home or commercial space. However, its flawless, sweeping operation hinges entirely on one critical first step: the precise sizing and framing of the rough opening. At Karrdis, we understand that getting the structural foundation right is paramount. Unlike a standard hinged door, a Pivot Door rotates on a top and bottom pivot point set away from the frame, requiring specific spatial considerations for optimal performance and aesthetic appeal.
Key Steps for Sizing Your Opening
A correctly sized opening ensures your door swings freely without binding. Follow this essential checklist:
-
Calculate Door Size: Determine the exact finished dimensions of your door slab (height and width).
-
Add Operational Clearance: Integrate a minimum gap of 3/8” to 1/2” around all sides of the door for smooth movement and future adjustments.
-
Account for Hardware: The pivot door hardware itself, especially the pivot set, requires space within the head and floor. Consult your hardware manufacturer’s template.
-
Consider Flooring: Factor in finished floor height to ensure the door doesn’t scrape the surface.
Critical Framing Specifications
The rough opening must be reinforced to handle the significant weight and unique stress points of a pivot door system. Standard door framing is insufficient.
The table below outlines the core requirements:
| Framing Component | Specification | Purpose |
|---|---|---|
| Header | Double or triple LVL/engineered beam | Supports door weight, prevents sagging |
| King & Jack Studs | Doubled-up 2x6 or heavier lumber | Transfers load to foundation, reinforces latch side |
| Sill Plate | Reinforced and secured to subfloor | Anchors bottom pivot, absorbs operational force |
| Opening Width | Slab Width + 1” minimum | Allows for side clearances and shimming |
Pivot Door FAQ
What is the most common mistake when framing for a pivot door?
The most frequent error is using standard interior door framing practices. Pivot Doors are significantly heavier and exert different pressures. Under-framing can lead to binding, sagging, and eventual structural failure. Always over-reinforce the opening.
Can I install a pivot door in an existing doorway?
It is possible but often requires major modification. Existing openings are rarely sized or structured correctly. Typically, the opening must be widened, heightened, and completely re-framed to meet the reinforced specifications, a process where professional expertise from Karrdis is invaluable.
How much bigger should the rough opening be than the door?
As a general rule, the rough opening should be approximately 2 inches wider and 1.5 to 2 inches taller than the finished door slab dimensions. However, this is not universal. You must always defer to the specific requirements of your chosen Karrdis pivot door hardware set and slab thickness for exact measurements.
Ready to achieve the perfect foundation for your statement entrance? Our Karrdis specialists are here to guide you through every technical detail, from initial sizing to final installation. For precise specifications, expert advice, and premium hardware, contact us today to discuss your project.
