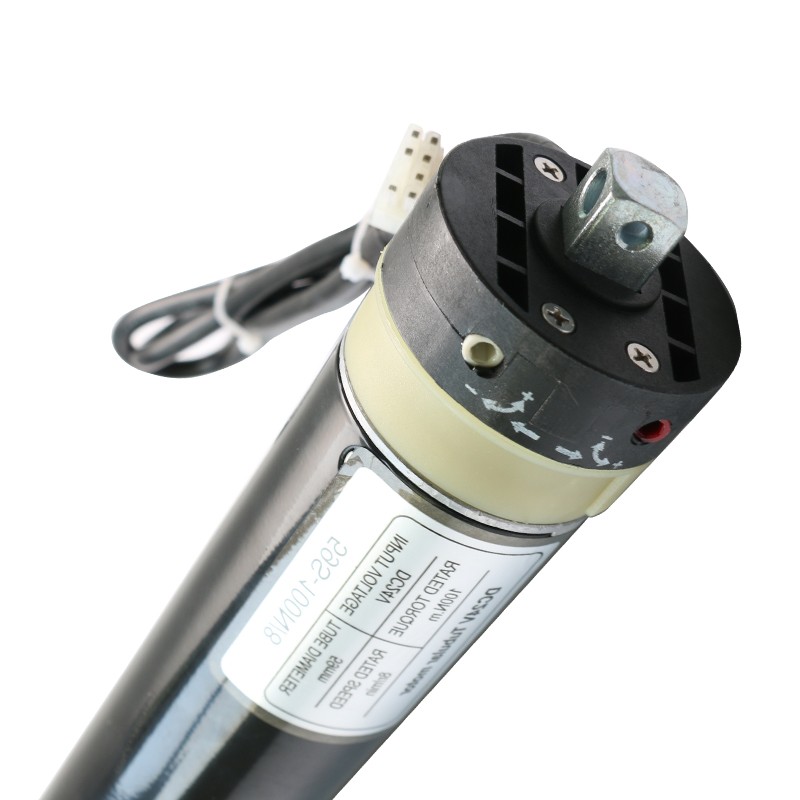

How Does the Torque Output of a 59mm Big Awning Tubular Motor Affect Awning Fabric Tension and Lifespan
2026-05-21
When designing or maintaining large retractable awnings, the torque output of your 59mm Big Awning Tubular Motor plays a critical role in fabric behavior and system longevity. FT Motor has engineered this motor size specifically for heavy-duty applications where improper tension leads to premature wear. Understanding torque helps installers and property owners avoid costly fabric replacement.
The Direct Relationship Between Torque and Fabric Tension
Torque determines how forcefully the motor rolls the fabric onto the tube. Insufficient torque leaves the fabric sagging, while excessive torque overstretches the material. A properly calibrated 59mm Big Awning Tubular Motor maintains consistent tension across the full extension and retraction cycle.
| Torque Level (Nm) | Fabric Tension Result | Effect on Lifespan |
|---|---|---|
| Below 40 Nm | Loose, wrinkling fabric | High wear from flapping and poor retraction |
| 40–60 Nm (optimal) | Even, firm tension | Maximum lifespan (8–12 years typical) |
| Above 60 Nm | Overstretched, stressed seams | Reduced lifespan (4–6 years due to seam failure) |
How Incorrect Torque Damages Awning Fabric
Three primary failure modes occur when torque mismatches the awning’s physical specifications:
-
Edge curling (low torque) – Fabric edges lift and catch wind, causing tearing
-
Center bagging (low torque) – Water pools and stretches fabric permanently
-
Seam splitting (high torque) – Repeated over-tension loosens thread and coating
FT Motor recommends matching torque output to fabric weight and awning width. A 6-meter awning requires roughly 50 Nm from a 59mm Big Awning Tubular Motor to maintain neutral tension without creep or stretch.
Benefits of Optimized Torque for Fabric Lifespan
Maintaining torque within ±5% of the ideal value directly extends the life of acrylic, polyester, and solar-screen fabrics. Controlled tension reduces micro-tearing around stitch holes and prevents the fabric from taking a “set” (permanent stretching).
| Fabric Type | Recommended Torque Range | Expected Lifespan with FT Motor |
|---|---|---|
| Acrylic (solution-dyed) | 45–55 Nm | 10–12 years |
| Polyester (PVC-coated) | 50–60 Nm | 8–10 years |
| Mesh (solar screen) | 38–48 Nm | 7–9 years |
59mm Big Awning Tubular Motor FAQ – Common Questions
Q1: How do I know if my 59mm Big Awning Tubular Motor is delivering too much torque for my fabric?
A1: Observe the fabric surface after full extension. If you see visible ripples radiating from the roller tube outward or hear a creaking sound from seam stitches, torque is excessive. Another sign is difficulty retracting – the motor may stall or the fabric may roll unevenly because tension locks the layers. Use a torque meter on the output shaft, or contact FT Motor for a calibration guide. Reduce torque by adjusting the limit switches or replacing the motor with a lower-torque variant designed for lightweight fabrics.
Q2: Can low torque from a 59mm Big Awning Tubular Motor permanently ruin awning fabric even if I don’t see immediate damage?
A2: Yes. Low torque allows the fabric to hang loosely, causing two silent but irreversible issues. First, repeated wind exposure makes the fabric slap against the roller tube, abrading the coating. Second, during rain, loose fabric forms pockets where water weight stretches the weave unevenly – this “plastic deformation” cannot be reversed. After just six months of under-torque operation, acrylic fabric can lose up to 30% of its tensile strength. FT Motor advises checking tension every three months by measuring fabric deflection with a 5 kg weight placed at the center.
Q3: Does a higher torque 59mm Big Awning Tubular Motor always mean longer motor and fabric life?
A3: No. While a higher-torque motor runs cooler and may last longer electronically, it often damages fabric faster. The motor itself may survive 15,000 cycles, but the attached fabric could fail after 3,000 cycles if torque exceeds safe limits. FT Motor engineers motors with adjustable electronic torque limiting specifically to protect fabric. For a given awning, the ideal torque is the lowest value that still achieves full retraction without sagging. Overspecifying torque reduces overall system lifespan by shifting failure from the motor to the more expensive fabric and sewing.
Conclusion: Precision Torque Matters for Total System Value
Selecting the correct torque output for your 59mm Big Awning Tubular Motor directly controls fabric tension and prevents premature aging. FT Motor provides torque-matched solutions with electronic limiters that protect both motor and awning fabric across thousands of cycles.
Contact us today for a torque calculation sheet tailored to your awning dimensions and fabric type. Our engineers will help you select the right 59mm Big Awning Tubular Motor model to maximize fabric lifespan and reduce long-term maintenance costs.
