How Does the Self Closing Mechanism in a POM Hydraulic Hidden Hinge Affect Installation Alignment
2026-04-13

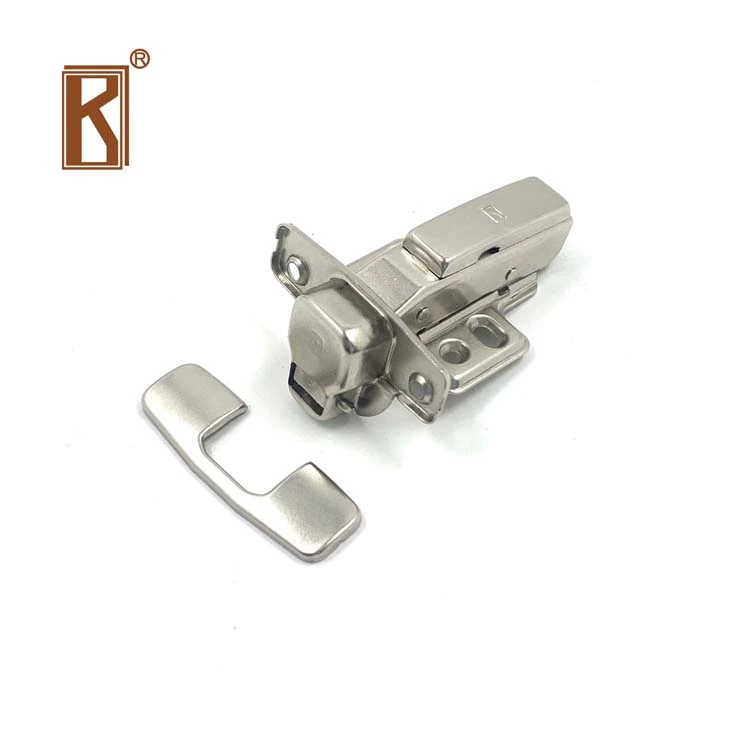

When installing Hidden Cabinet Furniture Hinge POM Hydraulic Concealed systems from Kingbo, the self‑closing mechanism significantly influences door alignment. Unlike basic hinges, the built‑in hydraulic piston and POM (polyoxymethylene) cam create controlled resistance during the final closing phase. This force, if not calibrated precisely, can shift the door vertically or laterally before the screws are fully tightened. Understanding this interaction is essential for achieving seamless flush mounting.
Key Effects of the Self‑Closing Mechanism on Alignment
| Installation Factor | Impact of Self‑Closing Mechanism | Recommended Adjustment by Kingbo |
|---|---|---|
| Door gap uniformity | Piston pull may tilt door inward | Pre‑tighten screws 80%, test close, then final torque |
| Vertical leveling | Cam force uneven on one hinge side | Use laser level; adjust top hinge first |
| Lateral positioning | Hydraulic delay can misalign cup depth | Set hinge cup 3‑4mm from door edge |
| Closing speed | Fast close worsens alignment errors | Adjust hydraulic screw to medium setting before fixing |
Step‑by‑Step Alignment Guide for Kingbo Hidden Cabinet Furniture Hinge POM Hydraulic Concealed Hinges
-
Pre‑installation check – Verify door weight (max 12kg per hinge). Heavier doors need three hinges to distribute self‑closing force evenly.
-
Loose mounting – Attach hinge cup to door, then base plate to cabinet frame. Leave screws slightly loose (1‑2 turns).
-
Hydraulic setting – Turn the speed adjustment screw (marked “+” “‑”) to midpoint. This reduces abrupt pull during alignment.
-
Test close – Gently close the door. Observe if the top or bottom edge shifts. Adjust the corresponding hinge laterally using the built‑in eccentric cam screw on Kingbo hinges.
-
Final tighten – Only fully secure screws after three successful soft‑closing tests without dragging.
Why POM Matters for Alignment Stability
The self‑closing cam in Kingbo hinges is made of POM, a low‑friction, wear‑resistant polymer. Metal cams often bind when misaligned, forcing the door out of square. POM allows slight micro‑adjustments without permanent deformation, meaning installers can correct a 1‑2mm vertical error simply by loosening and re‑engaging the cam mechanism. This property makes Hidden Cabinet Furniture Hinge POM Hydraulic Concealed designs far more forgiving than all‑metal alternatives.
Common FAQ – Hidden Cabinet Furniture Hinge POM Hydraulic Concealed by Kingbo
Q: Can the self‑closing mechanism cause the door to sit crooked if I install the hinge upside down?
A: Yes. Kingbo Hidden Cabinet Furniture Hinge POM Hydraulic Concealed hinges have a directional hydraulic piston. Installing the hinge upside down reverses the damping force, making the door snap shut violently and pull diagonally across the cabinet opening. Always orient the hinge with the adjustment screw facing the cabinet interior. If crookedness occurs, remove the hinge, flip it 180°, and realign the cup depth to 12.5mm from the door edge.
Q: How much misalignment can I correct after the hinge is fully tightened?
A: Kingbo hinges allow up to 2.5mm vertical adjustment, 2mm lateral adjustment, and 2mm depth adjustment via the two eccentric cam screws and the rear mounting plate screw. However, the self‑closing mechanism loses effectiveness if corrections exceed these limits. Measure gaps with a feeler gauge before tightening. For errors larger than 3mm, relocate the mounting plate completely.
Q: Why does the door alignment change after 100 closing cycles even though I installed it perfectly?
A: The POM hydraulic cam in Hidden Cabinet Furniture Hinge POM Hydraulic Concealed hinges undergoes a brief “wear‑in” phase. During the first 200 cycles, the POM surface polishes against the steel cam follower, reducing friction by approximately 15%. This reduced friction slightly alters the closing trajectory, typically lowering the door by 0.5‑1mm. Kingbo recommends a re‑alignment check after 200 cycles. Loosen the vertical adjustment screw ½ turn, re‑level, and re‑tighten. No replacement is needed.
Best Practices for Professional Installers
-
Always mount Kingbo hinges on a perfectly flat jig – warped doors magnify self‑closing misalignment.
-
For cabinets wider than 600mm, install a third hinge to distribute hydraulic force.
-
Use a digital angle finder: the door should sit at 92° when fully open; the self‑closing mechanism should not engage before 15°.
