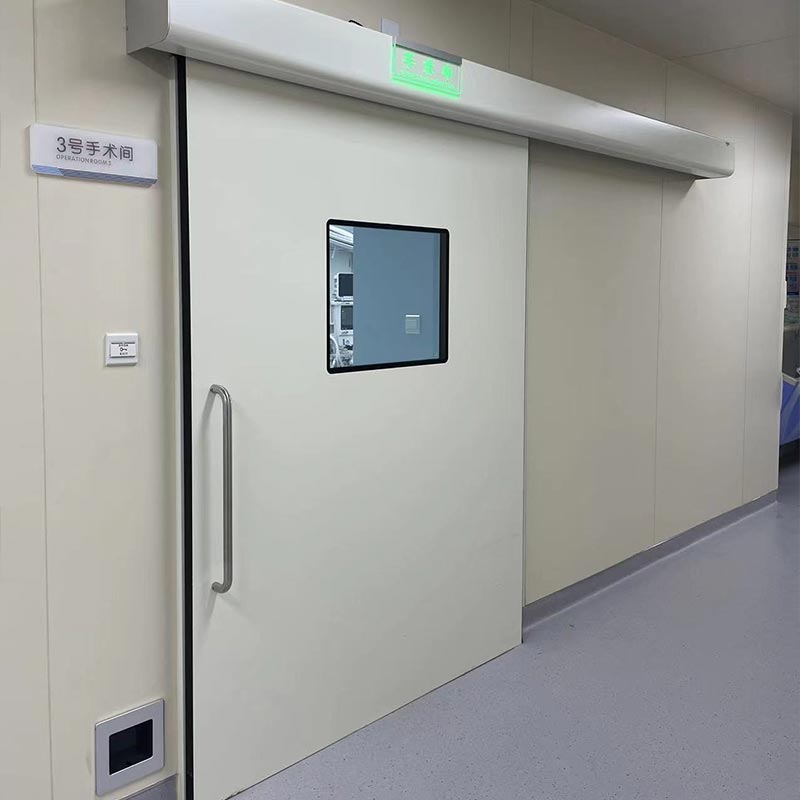

How Does a Dual-Motor Automatic Hermetic Sliding Door Improve High-Performance Spaces?

When a project requires more than a conventional entrance system, door performance becomes an important part of the overall environment. A hermetic sliding door must provide smooth movement while also maintaining reliable sealing, safety, durability, and convenient access. This is especially important in operating rooms, ICUs, clean areas, CT rooms, laboratories, and other controlled environments where air leakage and unnecessary disturbance should be minimized. The Dual-Motor Automatic Hermetic Sliding Door combines independent drive functions with an airtight sliding structure to provide a more controlled and stable door solution. Ningbo OWNIC Technology Co., Ltd. has developed this type of door for demanding applications, using dual-motor synchronous control, PID and FOC control technologies, and a specialized guide rail structure. According to the manufacturer's published specifications, the door can achieve high-level air tightness under Chinese and European standards.

Why Is Dual-Motor Technology Important?

Traditional automatic hermetic sliding doors generally use one motor to manage the main movement and sealing process. Although this configuration can be suitable for many standard applications, the requirements become more demanding when the door is large, heavy, frequently operated, or required to maintain a higher level of sealing performance.

A dual-motor structure separates key operating functions. One motor can manage the horizontal opening and closing movement, while the second motor controls the lifting, lowering, and compression action required to achieve hermetic sealing. This arrangement allows each drive system to concentrate on its specific movement instead of placing the entire mechanical load on one motor.

For demanding environments, the benefits include:

• More balanced door operation

• More precise sealing movement

• Stable performance during frequent operation

• Better adaptability to heavier door panels

• Reduced mechanical stress on individual drive components

• Improved operational reliability

• Flexible adjustment of opening and closing speeds

OWNIC's published product information states that its dual-motor system uses synchronous drive and intelligent communication to balance torque output. The system also incorporates PID closed-loop and FOC space-vector control technologies for more precise movement management.

What Makes the Door Hermetic?

The purpose of a hermetic sliding door is not simply to move automatically from one side to another. Its key function is to create a controlled barrier when closed.

During the closing process, the door panel performs a specially designed downward and inward movement. According to OWNIC's technical description, its dual-track guide system allows the door to move downward by approximately 10 mm and inward by approximately 15 mm during closing. This movement helps the door panel press against the sealing structure and form a tighter closure.

OWNIC states that the product reaches the highest Level 8 air-tightness classification under GB/T 7106-2019 and Class 4 under EN-12207. For projects where pressure control and contamination prevention are important, this sealing capability can contribute to a more controlled indoor environment.

The result is particularly valuable in areas where uncontrolled air movement can affect cleanliness, temperature, pressure balance, or operational procedures.

Where Can a Dual-Motor Automatic Hermetic Sliding Door Be Used?

A high-performance hermetic door can support many specialized environments. Ningbo OWNIC Technology Co., Ltd. identifies applications including operating rooms, newborn rooms, entrances, CT rooms, and other high-purification areas.

The flexibility of the system makes it suitable not only for medical construction but also for specialized projects where entrance dimensions, operating conditions, and structural requirements vary.

How Does It Perform in Daily Operation?

The practical value of an automatic door is ultimately determined by its performance during repeated daily use. A technically advanced system should remain convenient for staff and users while maintaining consistent movement.

The OWNIC dual-motor model provides adjustable opening and closing speeds from approximately 250 to 550 mm/s. The reverse time can also be adjusted, while the hold-open period can be set according to application requirements. Its published technical data supports single door panels up to 150 kg and double-door configurations of up to 2 × 90 kg.

This adjustability allows project engineers to select operating parameters according to traffic flow and environmental requirements rather than relying on a fixed operating mode.

Key Performance Highlights

1. Dual independent motor drives – Separates major movement and sealing functions.

2. Synchronous control – Helps coordinate the two motors during operation.

3. Closed-loop control – Supports accurate movement and torque management.

4. High-level hermetic sealing – Designed for demanding controlled environments.

5. Adjustable operating speed – Allows project-specific configuration.

6. Heavy-duty capability – Suitable for larger or heavier door panels.

7. Specialized guide rail design – Supports the final compression and sealing action.

8. Custom engineering potential – Enables adaptation to different project requirements.

Why Is Ship-Type Customization a Major Advantage?

One of the most valuable advantages for specialized projects is ship-type customization.

Marine environments are fundamentally different from conventional hospital or commercial buildings. Ship interiors can involve narrow corridors, irregular bulkhead structures, limited installation space, vibration, movement, pressure differences, and highly specific passage requirements. A standard architectural door may therefore be difficult to integrate into a vessel without modification.

For shipbuilding projects, a Dual-Motor Automatic Hermetic Sliding Door can be engineered around the actual installation environment rather than forcing the ship structure to accommodate a standard door.

Ningbo OWNIC Technology Co., Ltd. can provide customized solutions according to project requirements, making this concept particularly suitable for specialized vessels and marine interiors. Customization can focus on areas such as:

• Door width and height

• Single or double sliding configuration

• Door panel construction

• Surface finish

• Frame dimensions

• Installation position

• Opening direction

• Control requirements

• Sealing requirements

• Passage-space limitations

• Ship bulkhead integration

• Specialized vessel layouts

This advantage is especially meaningful for hospital ships, research vessels, offshore platforms, passenger ships, military-support vessels, and other specialized marine projects where the door must work as part of the vessel's overall interior system.

Instead of treating ship customization as an afterthought, an experienced manufacturer can consider the door, frame, sealing structure, operator, and installation environment as one integrated system.

Dual-Motor vs. Conventional Single-Motor Design

The dual-motor approach does not simply mean adding another motor. The real advantage comes from coordinating the two drive systems through intelligent control. This allows the opening, closing, and sealing actions to be managed more precisely.

Why Choose Ningbo OWNIC Technology Co., Ltd.?

Ningbo OWNIC Technology Co., Ltd. has specialized in automatic door development and manufacturing for decades. Its product range includes automatic hermetic doors, automatic sliding doors, X-ray shielding doors, swing doors, folding doors, and automatic operators. The company states that it has more than 30 years of professional experience and has obtained ISO and CE-related certifications as well as multiple national patents.

For buyers, the importance of choosing an experienced manufacturer goes beyond purchasing a door operator. A complete project may require mechanical engineering, door panel design, control integration, sealing optimization, installation guidance, and after-sales support.

OWNIC's published product portfolio also demonstrates its focus on medical and specialized door systems, including automatic hermetic ICU doors and built-in or on-wall hermetic sliding doors.

For international projects, this experience can be particularly valuable when a door needs to be adapted to unusual building structures or customized ship interiors.

How Can Buyers Select the Right Configuration?

Before ordering a Dual-Motor Automatic Hermetic Sliding Door, project managers should evaluate several technical factors.

1. Door Size:
Determine the required clear opening and overall door dimensions.

2. Door Weight:
The motor and operator configuration should correspond to the actual panel weight.

3. Operating Frequency:
High-traffic environments may require different operating parameters from low-frequency rooms.

4. Sealing Requirements:
Identify the required air-tightness level and environmental conditions.

5. Installation Structure:
Check whether the system will be installed in-wall, on-wall, or within a specialized structure.

6. Customization Requirements:
For ships and other non-standard projects, provide detailed drawings and installation conditions at the early design stage.

7. Control Integration:
Consider access control, sensors, emergency functions, and other building or vessel management requirements.

A correct configuration helps the door deliver its intended performance while reducing unnecessary modifications during installation.

A Smarter Choice for Specialized Door Projects

The modern automatic hermetic door is no longer simply an entrance product. It can become an important component of environmental control, workflow efficiency, safety, and architectural integration. The Dual-Motor Automatic Hermetic Sliding Door takes this concept further by combining independent drive systems, intelligent control, specialized sealing movement, and adjustable operating parameters.

For hospitals and clean environments, these characteristics can help create more controlled and efficient spaces. For shipbuilding and marine projects, the ability to support ship-type customization is even more important. Every vessel has its own structural limitations and operational requirements, so a customized door solution can provide a better fit than a standardized product.

With its experience in automatic and hermetic door manufacturing, Ningbo OWNIC Technology Co., Ltd. offers a practical option for projects that require both professional engineering and customized production. Whether the project involves an operating room, ICU, cleanroom, CT room, specialized entrance, or a customized marine installation, the right door configuration should be developed around the actual application.

Looking for a reliable Dual-Motor Automatic Hermetic Sliding Door for your next project? Contact us today. Ningbo OWNIC Technology Co., Ltd. can provide professional technical support and customized solutions, including ship-type customization, to match your specific dimensions, installation conditions, sealing requirements, and project needs. Contact us to discuss your drawings and requirements and find the right hermetic sliding door solution for your project.
