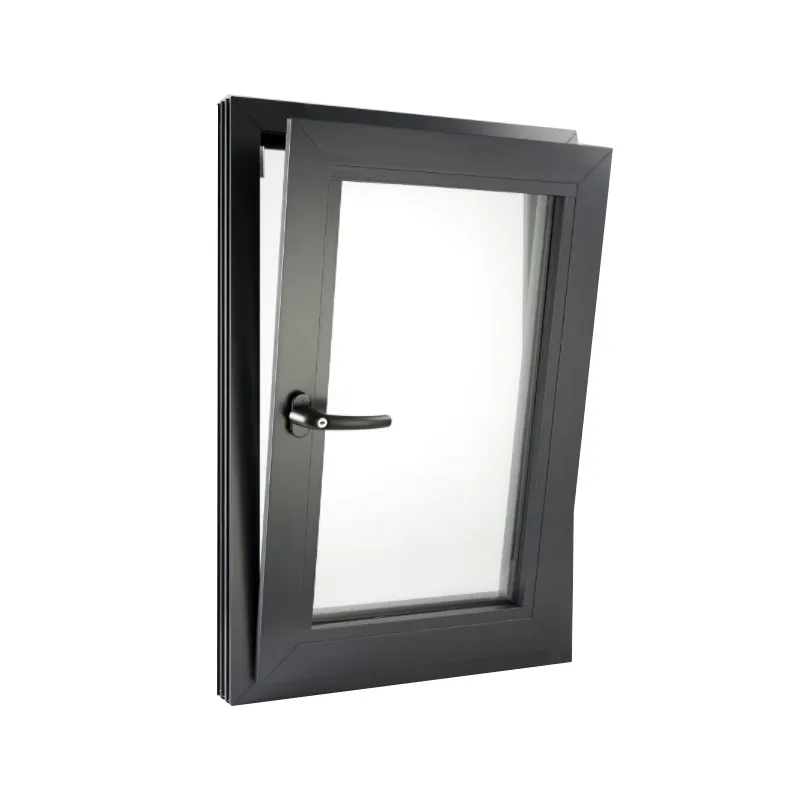

Heat-Insulate D65 Series Inward Tilt-Turn Aluminum Windows

Product Description

Heat-Insulate D65 Series Inward Tilt-Turn Aluminum Windows

What is a tilt and turn window?

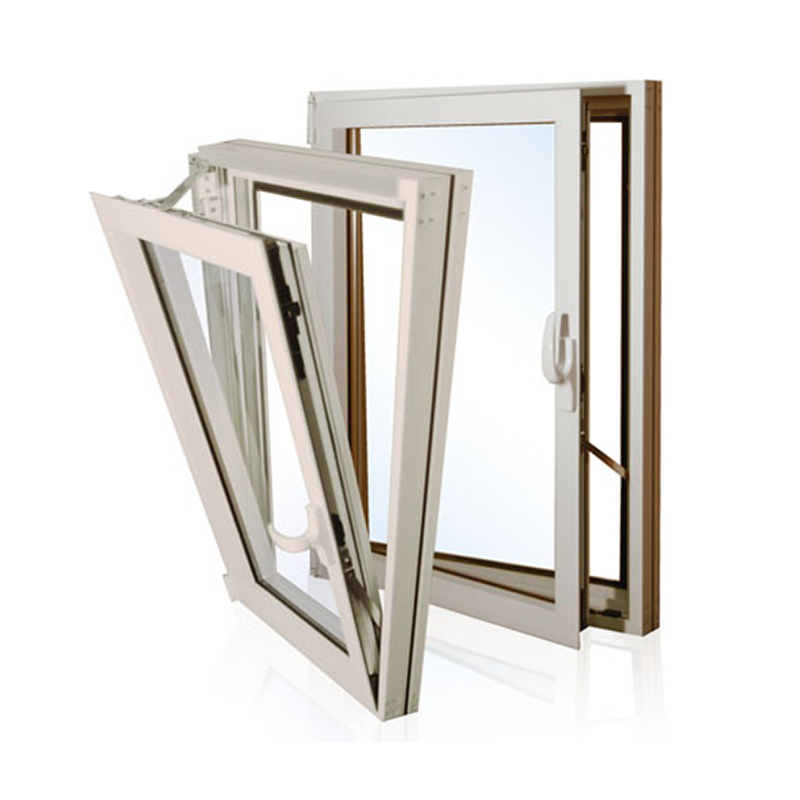

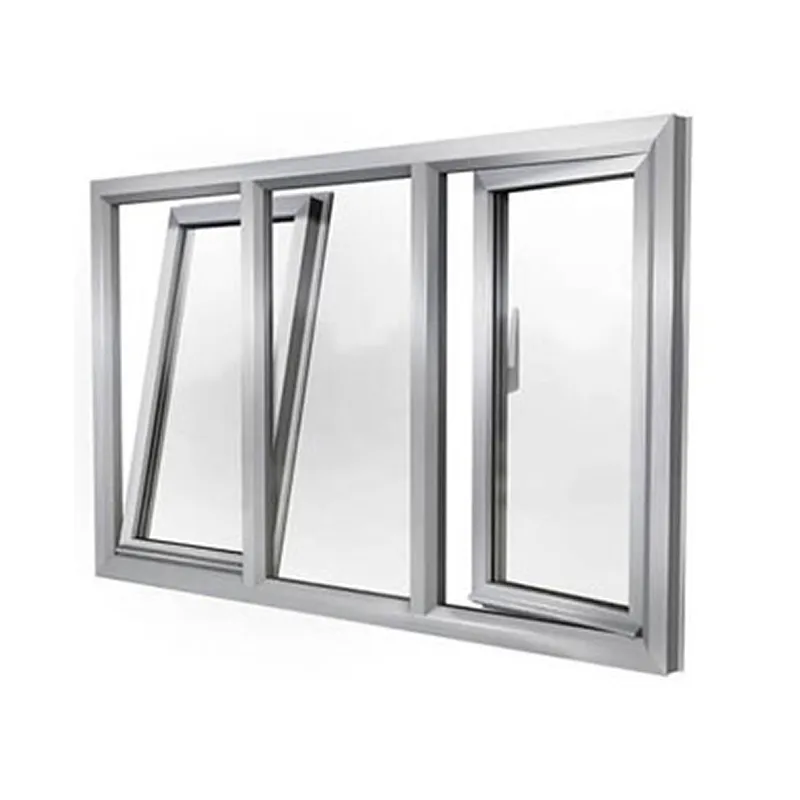

A tilt and turn window is an operable European window type. A tilt and turn window can tilt inwards by pivoting on the bottom hinges or fully swing-in like a door. However, instead of using a crank style casement system, these use a rotating hinge system that is operated by a single turn of the handle they have. One turn can open the window in either of the 2 ways.

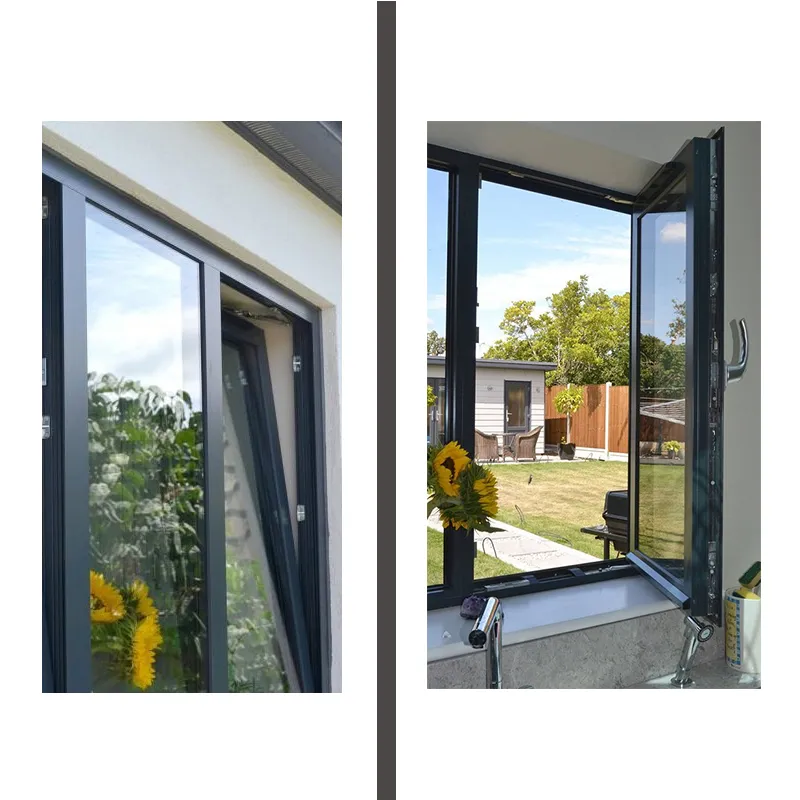

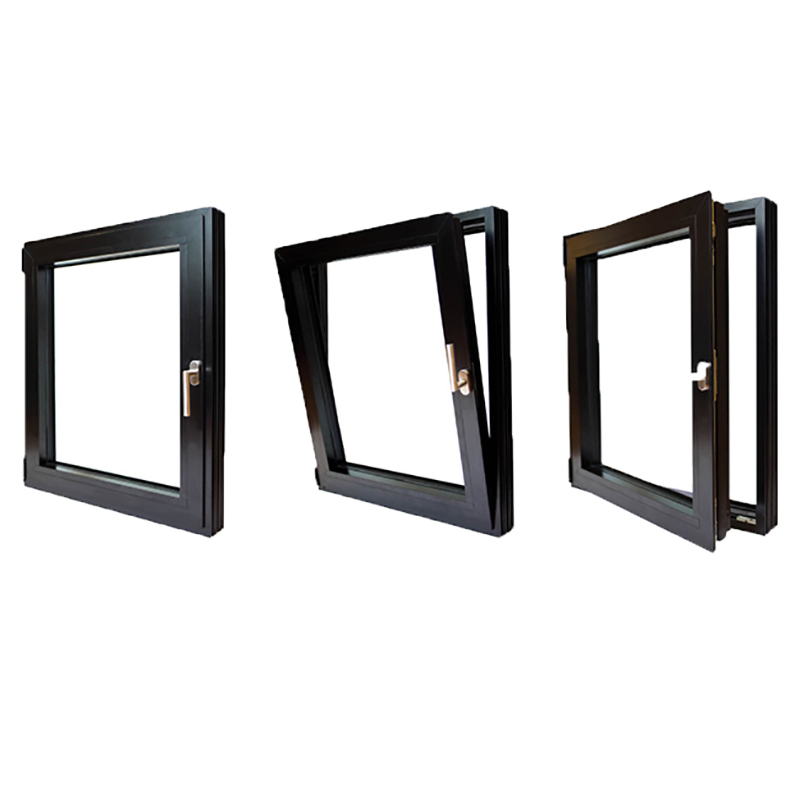

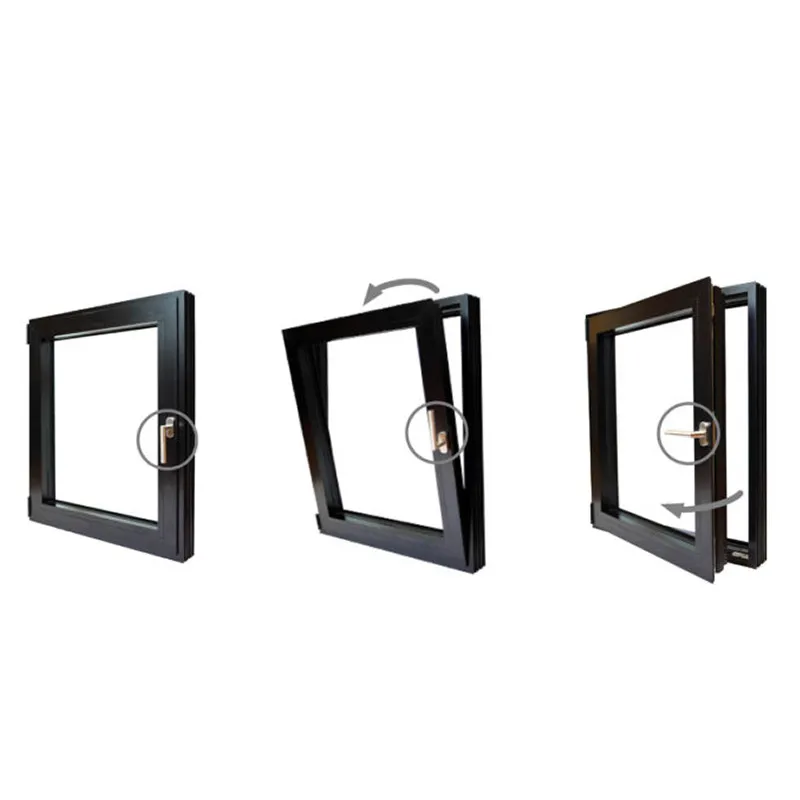

Tilt and turn windows are European style operable windows that exell in every way above casement windows. Their key functionality is the 2 modes of opening for ventilation of cleaning access. One of the ways it opens is by pivoting on the bottom hinges, tilting in, and making an opening at the top of the window. This mode is best for ventilation. However, it is special in that the air flow pattern you get from opening a window this way is most user friendly and beneficial for your health. The other way these windows can open is by pivoting on the side rotating hinges and swinging inwards like a door would. Both modes can be accessed by an easy turn of the handle they have. Turn it so that the tip of the handle is pointed up and the window tilts in. Turn the handle so that it is parallel to the floor, and you can now fully swing the sash in. To close the window, you simply need to push or pull the sash back in so that it resembles a closed window and turn the handle back to the original or locked position, that is where the handle points down

Name/Model:	D65 Aluminium Inward tilt-turn Window with window screening
Profiles:	6063-T5 high quality aluminium profiles
Size for Window	Width of frame:66mm
	Width visual surfaceof frame:36/58mm
	Width of Window:55mm
	Width visual surfaceof window:46/42.7mm
	Thickness 1.4mm
	Width fo insulating trip:24/14.8mm
	Width of single frame≤3200mm
	Height of single frame≤3000mm
	Width of window: 420-1300mm
	Height of window: 700-2100mm
Recommended dimension for window	Width of window: 550-750mm
Recommended dimension for window	Height of window: 700-1600mm
Surface treatment	Titanium gray/Deep sand brown
Glass Choice:	5+12A+5(Standard); glazing rebate 32mm
	5+20A+5(Optional)(It can place the louver in the middle); glazing rebate 40mm
	6+18A+6(Optional); glazing rebate 40mm
	8+15A+8(Optional); glazing rebate 40mm
	5+0.75 doubling+5+15A+5(Standard); glazing rebate 40mm
Flyscreen:	Stainless steel security burglar mesh(Standard)
Flyscreen:	Stainless steel high transmittance (Optional)
Hardware :	Imported famous brand hardwares & China Top brand hardwraes
Adhesive tape	Heda tape

Benefits of Tilt & Turn Window:
Tilt and turn windows come with a wide range of benefits, including:

Easy to clean from the inside
Suitable for multi-storey buildings
Child-safe ventilation
Opens inwards
