Firm in Structure Aluminum Casement Window with Fine Workmanship
HW49/HW100 series Casement WindowHW49/HW100 series is a outside inside casement system for elegant window, having multi opening ways of opening outside, inside, awning and tilt-turn.Inward side glass bead solves the security problems in low buildings and the safety installation problems in high buil......
Send Inquiry
Product Description

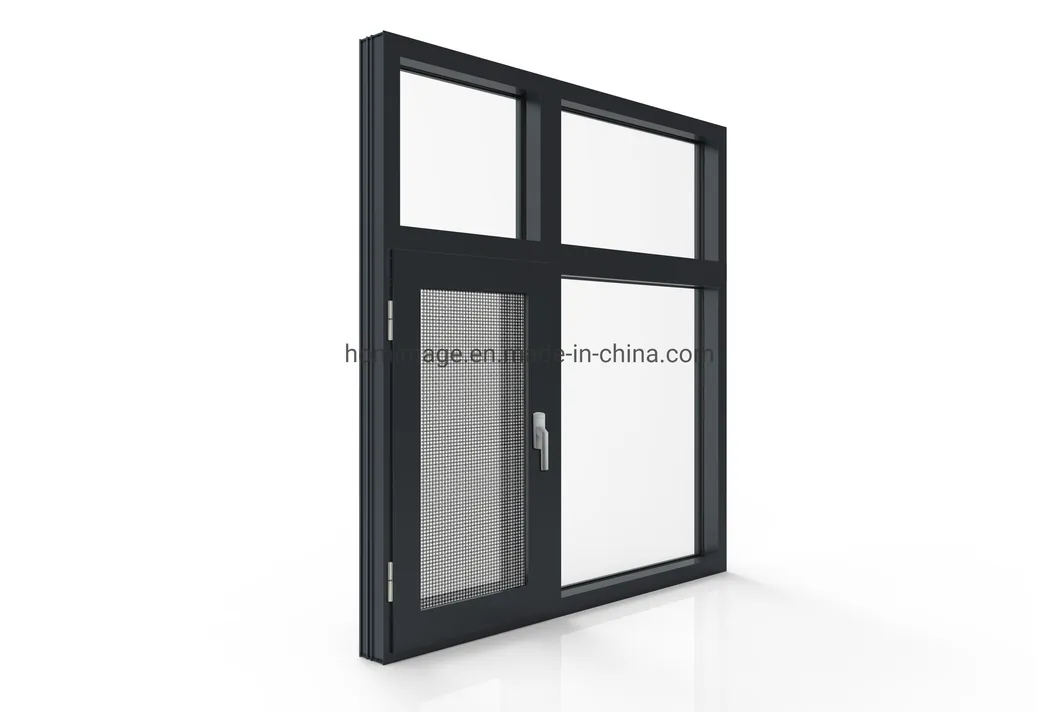

HW49/HW100 series Casement Window

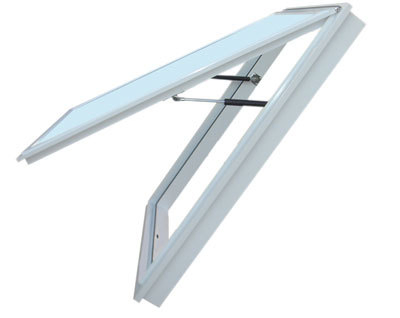

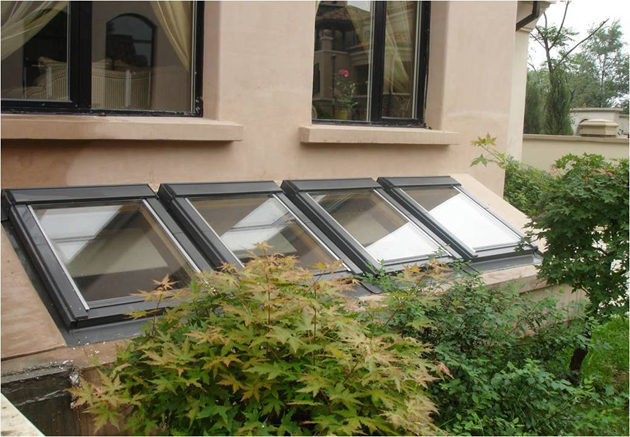

HW49/HW100 series is a outside inside casement system for elegant window, having multi opening ways of opening outside, inside, awning and tilt-turn.
Inward side glass bead solves the security problems in low buildings and the safety installation problems in high buildings.
The new drainage design guarantees the excellent water tightness.
Two different frames thickness are available to select, we can offer the most cost-effective solution depends on customers requesting.
| Performance | ||||||||
| Heat Preservation Performance W(m2.k) | Sound Insulation Performance (DB) | Watertight Performance (Pa) | Airtight Performance | Wind Load Resistance (KPA) | ||||
| 6+12A+6 Low-E,2.3-2.8, level 5/6 | 35DB level 4 | 500PA level 5 | level 6 | 4.1KPA level 7 | ||||
| Parameters | ||||||||
| Suitable Width/Height of Sash (mm) | Visible Width/Height (mm) | Aluminium width (mm) | Glass(Thickness) | |||||

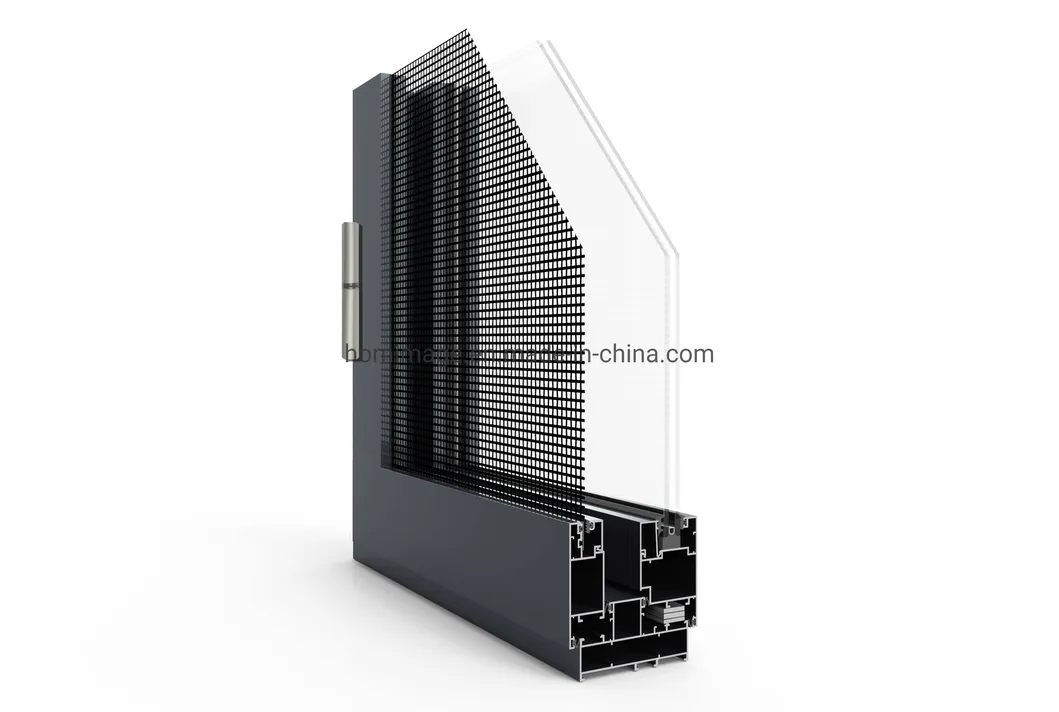

| Casement Window -Width 300-800mm -Height 300-1800mm -Weight 45kg | HCW49 Frame Width 51mm; Sash Width 74mm. HCW100(with steel fly screen sash) Frame Width 49mm; Sash Width 74mm. | HW49 Frame Depth 49mm Sash Depth 49mm HW100(with steel fly screen sash) Frame Depth 100mm Sash Depth 49mm | SGU: 4-10mm DGU: 14-35mm | |||||
POWDER COATING, ANODIZED AND WOODEN FINISH
ALUMINIUM EXTRUSION FACTORY CAPACITY
ALUMINIUM EXTRUSION FACTORY CAPACITY
| ALUMINIUM ALLOY | EXTRUSION DIAMETERS | BILLET CASTING LINE | EXTRUSION LINE | POWDER COATING LINE | ANODIZED LINE |
| 6063/6061-T4,5,6 | 80mm-300mm | 2*casting Lines | 14*extrusion Line | 1*vertical coating line | 1*full automatic line |
| FACTORY AREA | ANNUAL OUTPUT | STAFF/R&D | |||
| 1800 | Acres | 100,00 | Tons | 650/25 | members |

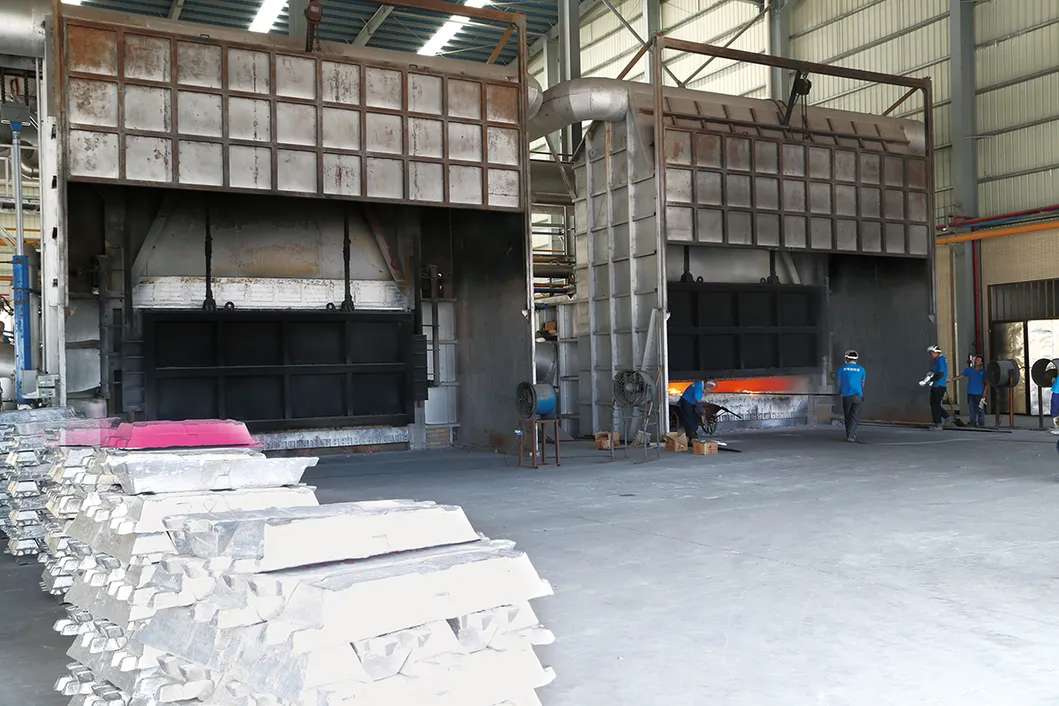

BILLET CASTING WORKSHOP

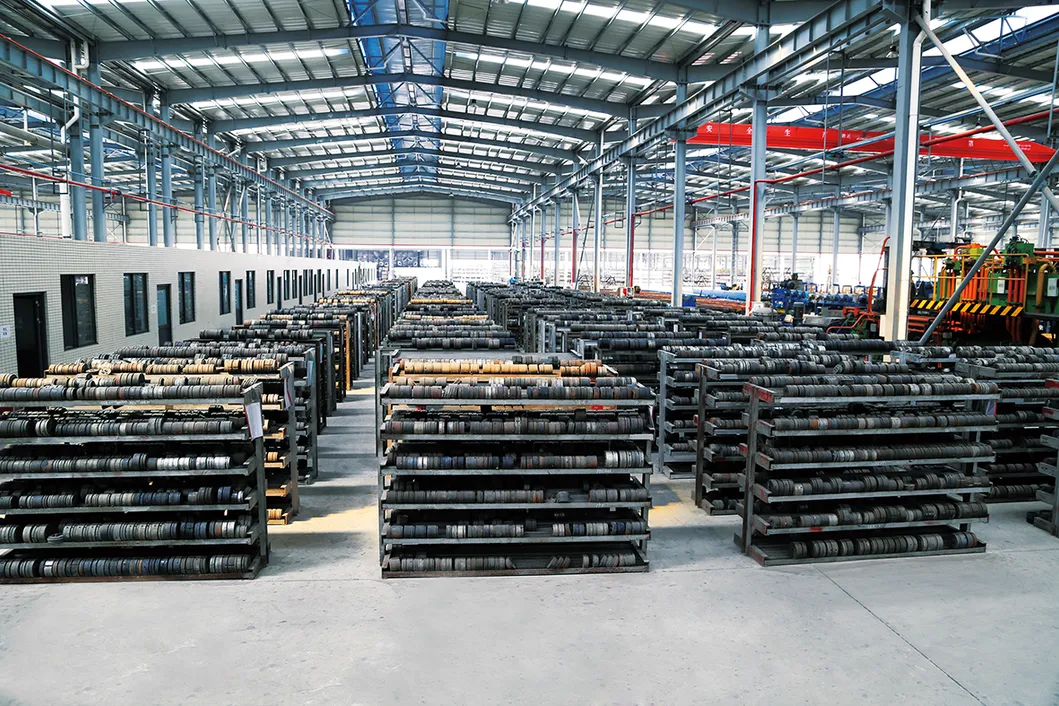

DIES WORKSHOP
EXTRUSION WORKSHOP

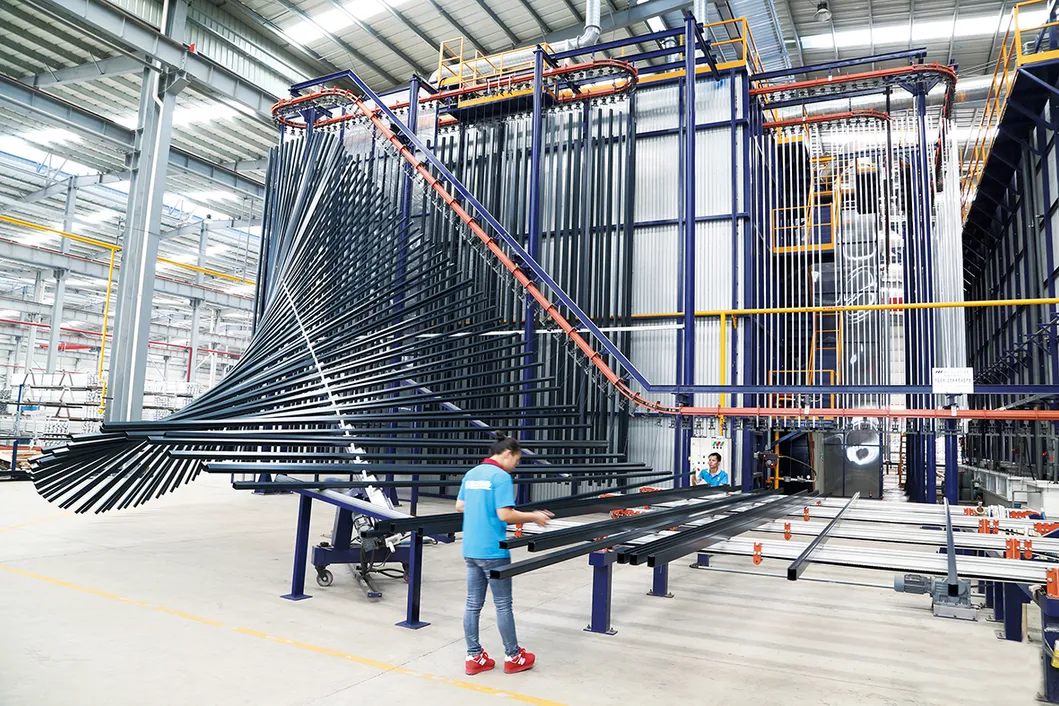

POWDER COATING LINE

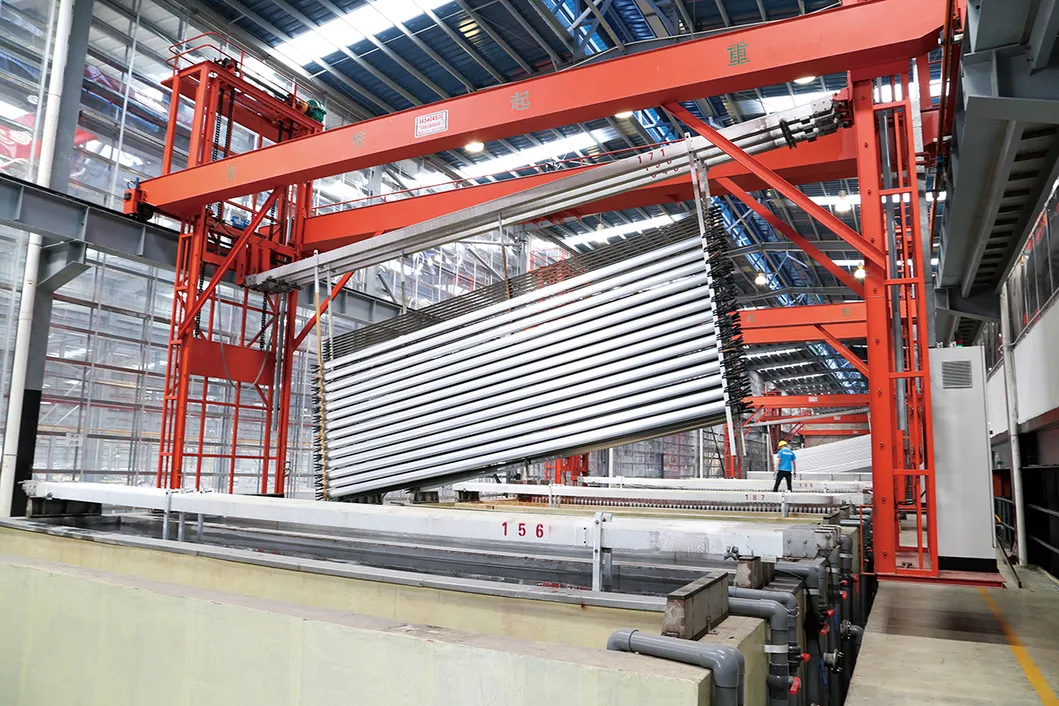

FULL-AUTOMATIC ANODIZED WORKSHOP
WHAT PRODUCTS WE OFFER
As of now we have successfully designed, manufactured and supplied globally the entire range of aluminium architectural and industrial products and hardwares and it includes the following:
•Aluminium profiles
•Sliding Doors
•Sliding Windows
•Entrance Doors
•Casement Windows
•Bi-folld door
•Unitized Curtain Walls
•Shopfront
•Sun rooms
•Partitions
•Balcony railings
•Structural Glazing
•aluminium cladding
•Aluminium formworks
WHAT SERVICE WE OFFER
Customized
Our teams bring the most professional and competitive suggestions for your engineer and design needs, providing solutions on various sizes and complex projects.
Technical Support
The independent local and abroad technology teams provide aluminium curtain walls technical support (such as wind load calculation, systems and façade optimization), installation guide.
System design
Based on the clients' and market's requirement, develop new aluminium windows and doors systems, match excellent accessories, which can better meet the client target market requirement.
FAQ
Q: Are you trading company or manufacturer?
A: We are aluminium manufacturer located in QINGYUAN with more than 30 years experience. And you are warmly welcomed to visit us.
Q: How long is your delivery time?
A: Generally it is 15-20 workdays after receiving payment.
Q: Do you provide samples for free? What's the MOQ?
A: The new die samples are free for approval and inspection. The MOQ is 8-10tons
Q: What is the payment terms?
A: 30% upon order confirmation and the balance should be paid before delivery by T/T./after receiving B/L copy. /L/C at sight
