Casement and Sliding Aluminum Window and Door for Building Materials with Glasses
We can supply the product based on your drawing and requirements. Just send an email to us to discuss what you need. Welcome to download our catalog for reference. All products are based on the CE standard, ISO9001, ISO14001 standard. We also produce aluminum profile which is a raw materials of alum......
Send Inquiry
Product Description
We can supply the product based on your drawing and requirements. Just send an email to us to discuss what you need. Welcome to download our catalog for reference.
All products are based on the CE standard, ISO9001, ISO14001 standard.

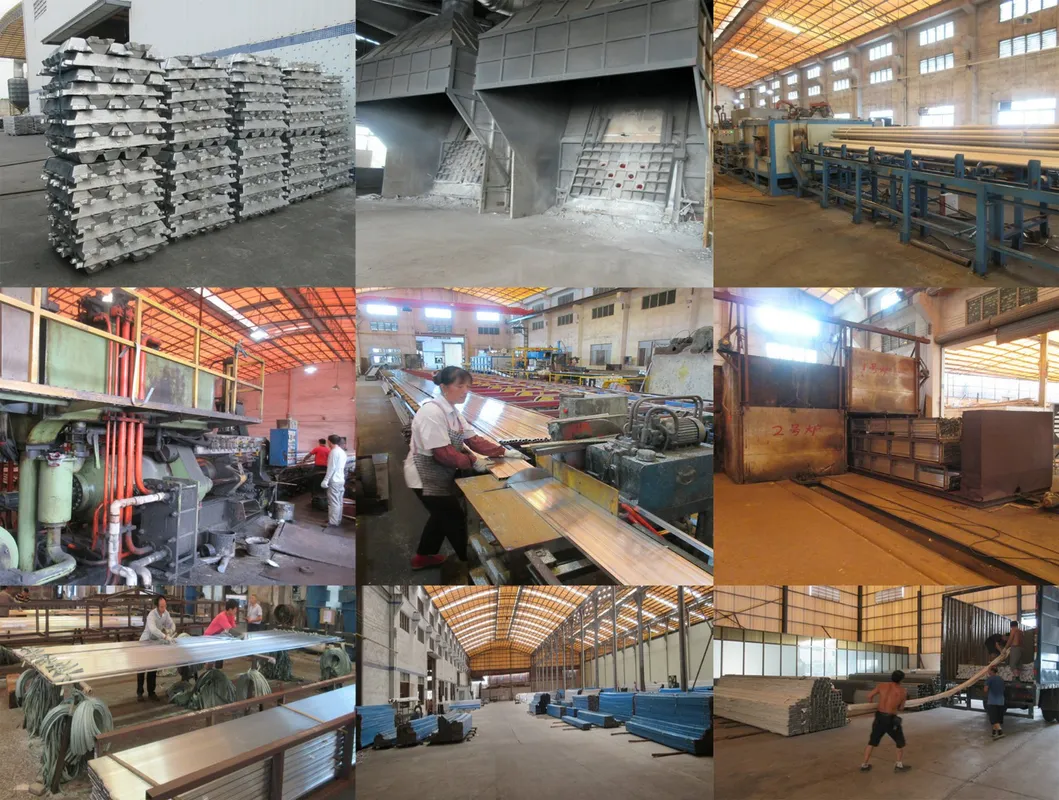

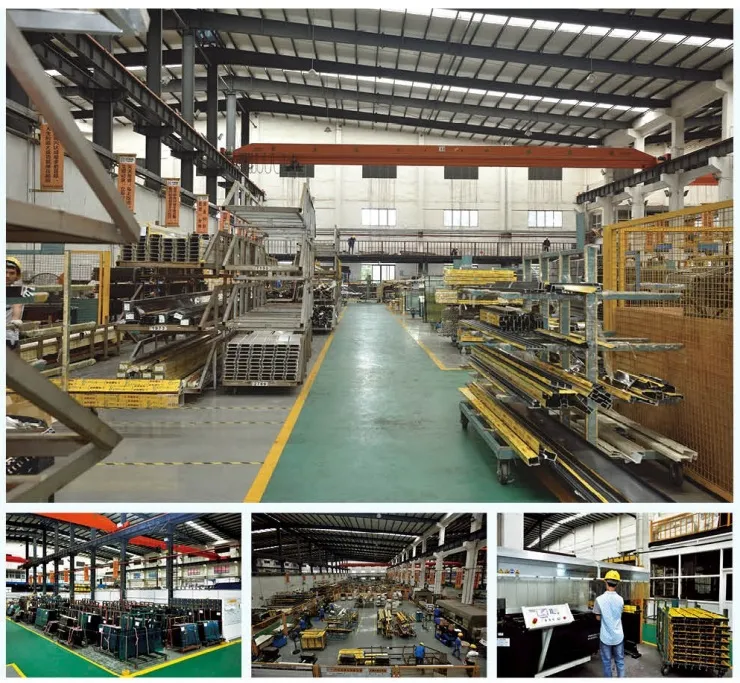

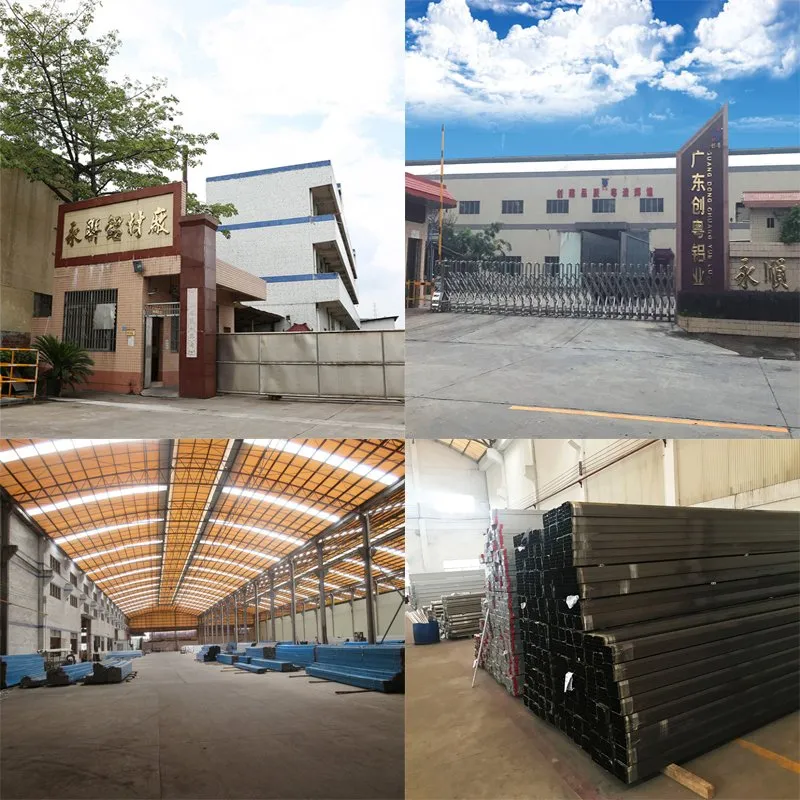

We also produce aluminum profile which is a raw materials of aluminum window and door. We can ensure that all the aluminum profile has high quality, we can control the quality from the beginning.

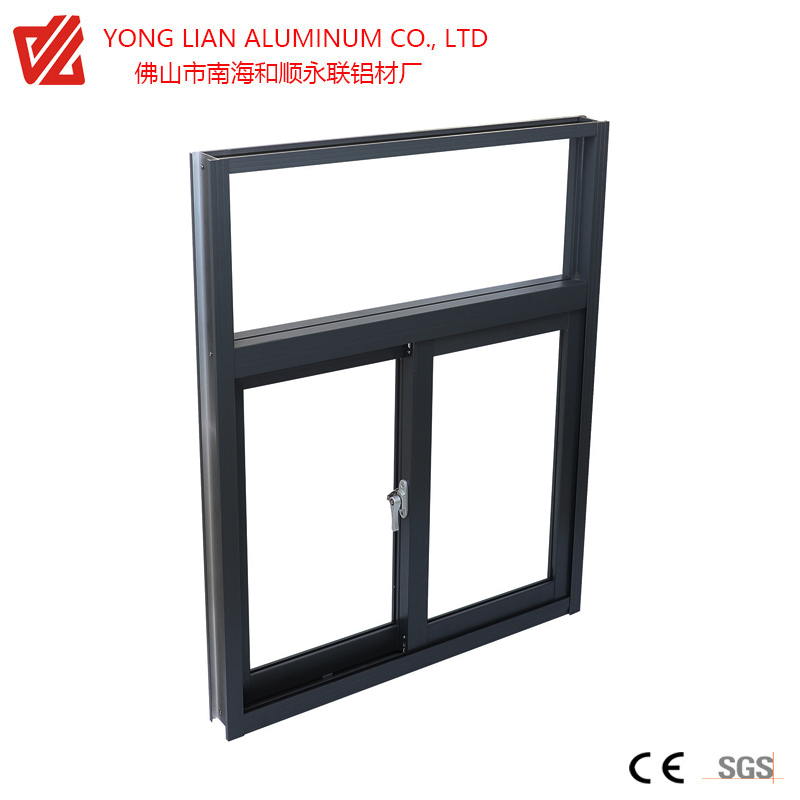

The aluminum alloy window is a window made of aluminum alloy building profiles and a fan structure, which is divided into ordinary aluminum alloy doors and windows and broken aluminum alloy doors and windows. The aluminum alloy window has beautiful appearance, sealing and high strength. It is widely used in the field of building engineering. In the home decoration, the aluminum alloy door and window packaging balcony is commonly used.
The surface of the aluminum alloy is oxidized and shiny. The sash frame is large and can be set with a large area of glass, which makes the indoor light bright and bright, enhances the contrast between the interior and exterior, and makes the living room more rich. The aluminum alloy itself is easy to be squeezed, the profile of the profile is accurate, and the machining accuracy is high. Therefore, many owners choose to use aluminum alloy doors and windows in the decoration.

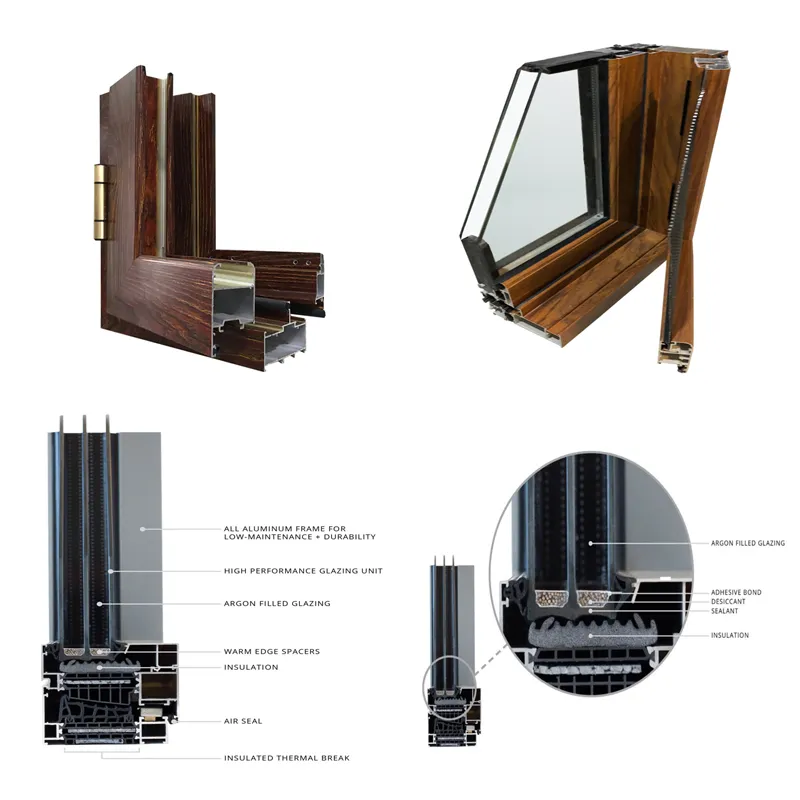

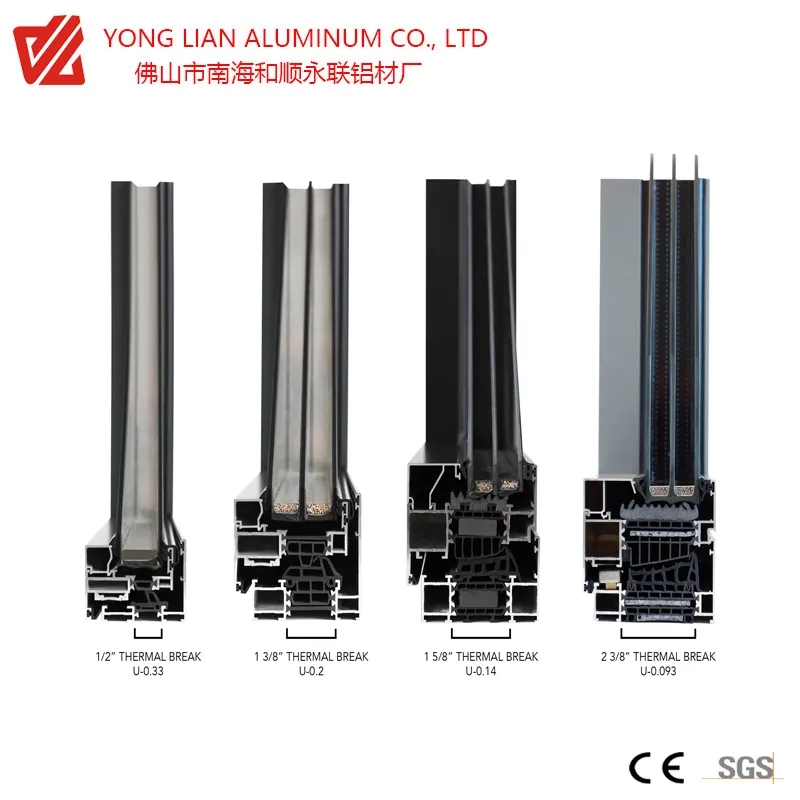

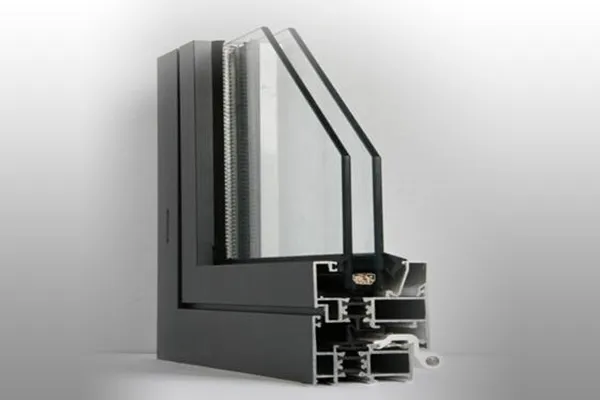

Broken bridge aluminum alloy doors and windows are also called insulated bridge aluminum doors and windows, insulated aluminum alloy doors and windows, broken aluminum doors and windows, broken hot and cold bridge profiles, broken bridge aluminum-plastic composite profiles. It has superior performance than ordinary aluminum alloy profiles. So, do you know why it is called aluminum alloy doors and windows? What is the origin of broken aluminum alloy doors and windows? In order to help everyone further understand why it is called aluminum alloy doors and windows, the following is a detailed introduction to the aluminum alloy doors and windows of the broken bridge, hoping to help friends who have this need!
Why is the broken bridge aluminum alloy door and window "broken bridge aluminum alloy doors and windows" The name "bridge" in the name refers to the "cold and hot bridge" in the material sense, and the "broken" word indicates the action, that is, "put the hot and cold bridge Broken. " Specifically, since the aluminum alloy is a metal, the heat conduction is relatively fast, so when the temperature difference between indoor and outdoor is large, the aluminum alloy can become a "bridge" for transferring heat, and the material is made of aluminum alloy doors and windows, and its heat insulation performance. It is not good. The characteristic performance of aluminum alloy doors and windows of broken bridges is heat insulation. The principle of broken aluminum alloy is to insert heat insulation strips in the middle of aluminum profiles to break the aluminum profiles to form a broken bridge, effectively preventing heat conduction. The thermal conductivity of insulated aluminum alloy doors and windows is 40% to 70% lower than that of non-insulated aluminum alloy doors and windows.
Broken bridge aluminum alloy doors and windows are also called insulated bridge aluminum doors and windows, insulated aluminum alloy doors and windows, broken aluminum doors and windows, broken hot and cold bridge profiles, broken bridge aluminum-plastic composite profiles. It has superior performance than ordinary aluminum alloy profiles. So, do you know why it is called aluminum alloy doors and windows? What is the origin of broken aluminum alloy doors and windows? In order to help everyone further understand why it is called aluminum alloy doors and windows, the following is a detailed introduction to the aluminum alloy doors and windows of the broken bridge, hoping to help friends who have this need!
Why is the broken bridge aluminum alloy door and window "broken bridge aluminum alloy doors and windows" The name "bridge" in the name refers to the "cold and hot bridge" in the material sense, and the "broken" word indicates the action, that is, "put the hot and cold bridge Broken. " Specifically, since the aluminum alloy is a metal, the heat conduction is relatively fast, so when the temperature difference between indoor and outdoor is large, the aluminum alloy can become a "bridge" for transferring heat, and the material is made of aluminum alloy doors and windows, and its heat insulation performance. It is not good. The characteristic performance of aluminum alloy doors and windows of broken bridges is heat insulation. The principle of broken aluminum alloy is to insert heat insulation strips in the middle of aluminum profiles to break the aluminum profiles to form a broken bridge, effectively preventing heat conduction. The thermal conductivity of insulated aluminum alloy doors and windows is 40% to 70% lower than that of non-insulated aluminum alloy doors and windows.
Installation process: Line positioning → aluminum alloy door and window draping installation → anti-corrosion treatment → aluminum alloy door and window installation in place → aluminum alloy window fixing → door and window frame and wall clearance treatment → door and window fan and door and window glass installation → installation hardware accessories.
Line positioning

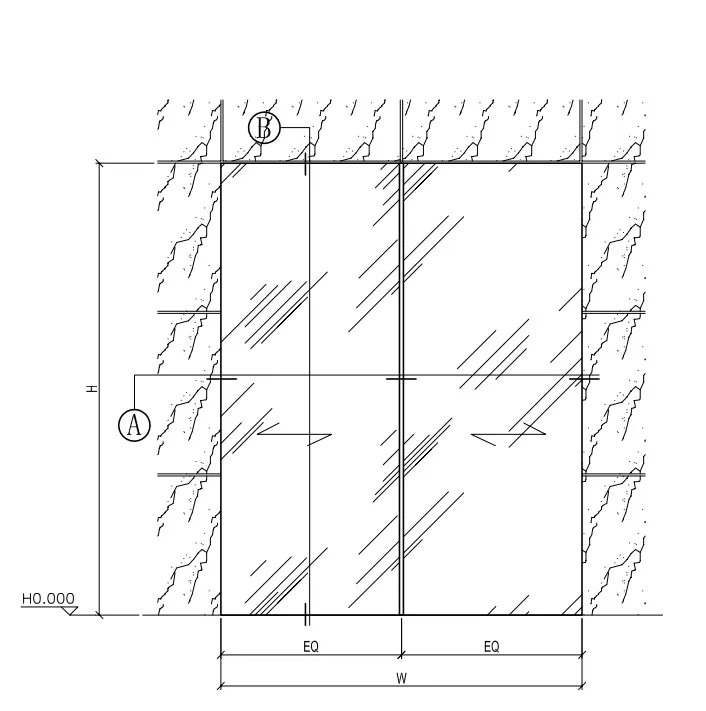

(1) According to the installation position, size and elevation of the doors and windows in the design drawings, the door and window edges are measured according to the center line of the door and window. In the case of multi-storey or high-rise buildings, the edge of the top and bottom windows and doors shall prevail, and the edge of the door and window shall be LED down by A Line pendant or theodolite, and marked at each door window, and the individual not straight edges shall be chiseled.
(2) The horizontal position of the doors and windows shall be measured by the horizontal line of the floor indoor +50cm, and the height of the window shall be measured downwards, and the elastic line shall be straightened. Each layer must maintain the same height of the window.
Aluminum window draping installation
Fix the draping on the aluminum alloy window according to the requirements of the construction drawings, and ensure that the position is correct and the installation is firm.
Antiseptic treatment
(1) When the anti-corrosion treatment design of the outer surface of the door and window frame is required, it shall be treated according to the design requirements. If the design does not require it, it can be coated with anti-corrosion coating or plastic film to protect the cement mortar from direct contact with the surface of the aluminum alloy door and window, resulting in electrochemical reaction and corrosion of aluminum alloy doors and windows.
(2) When installing aluminum alloy doors and windows, if it is fixed by connecting iron parts, it is preferable to use iron parts for connecting metal parts such as fixing parts and fixing parts. Otherwise, anti-corrosion treatment must be carried out to avoid electrochemical reaction and corrosion of aluminum alloy doors and windows.
Installation of aluminum alloy doors and windows in place
Install aluminum alloy door and window frames according to the planned door and window positioning line. And timely adjust the horizontal, vertical and diagonal length of the door and window frame to meet the quality standards, and then temporarily fixed with wooden wedges.
Fixation of aluminum alloy doors and windows
(1) When the iron parts are pre-buried on the wall, the iron feet of the aluminum alloy doors and windows can be directly welded directly to the pre-embedded iron parts on the wall, and the welding place needs to be rust-proofed.
(2) When there is no embedded iron on the wall, the iron feet of the aluminum alloy doors and windows can be fixed to the wall by metal expansion bolts or plastic expansion bolts.
(3) When there is no embedded iron on the wall, you can use the electric drill to make a hole with a depth of 80mm and a diameter of 6mm on the wall, and use L-shaped 80mm × 50mm 6rmn steel. Apply 108 cement slurry to the long end and punch into the hole. After the 108 cement slurry is finally set, the iron feet of the aluminum alloy doors and windows are welded to the embedded 6 mm steel bars.
Treatment between the gap between the door and window frame and the wall
(1) After the aluminum alloy doors and windows are installed and fixed, the concealed project acceptance should be carried out first. After passing the test, the gap between the door and window frame and the wall should be treated in time according to the design requirements.
(2) If the design is not required, the elastic insulation material or glass wool felt strips may be used to layer the gaps, and the outer surface is left with a 5~8mm deep notch to fill the caulking grease or sealant.
Door and window sash and door and window glass installation
(1) Door and window sash and door and window glass shall be installed after the completion of the decoration of the wall surface of the opening.

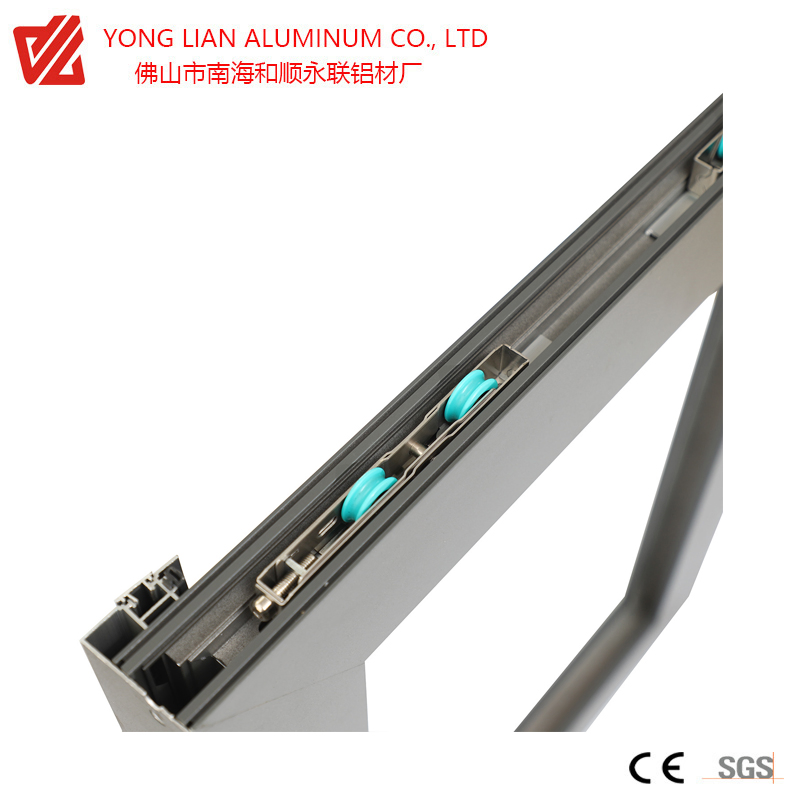

(2) Sliding the door and window After the door and window frame is fixed and fixed, the glass door sash is placed in the frame chute as a whole, and the gap with the fan can be adjusted.
(3) Open the doors and windows in the frame and the fan frame to assemble the upper wall, install and fix the glass, then adjust the gap between the frame and the fan, then place the glass into the fan and adjust the position. Finally, insert the sealing strip and Sealant.
(4) The floor spring door should be installed and fixed after the door frame and the ground spring main body are installed in the ground. First insert the glass into the door frame and put it into the frame together, adjust the gap of the frame fan, and finally fill in the sealing strip and sealant of the door leaf glass.
The advantages of broken aluminum alloy doors and windows are also many
Thermal insulation of aluminum alloy doors and windows of broken bridge: The inner and outer frames of the heat-insulating profile are softly combined, the frame is sealed by multiple strips, the sealing is tight, the airtightness and watertight performance are excellent, and the heat preservation performance is superior; The window sash adopts an insulating glass structure. The window is provided with sound insulation, heat insulation, heat preservation and function, which greatly saves the cost of mining and cooling. The heat transfer coefficient K value is detected below 2.23-2.94W/m2·K, and the energy saving effect is remarkable. The energy saving cost of several years is enough to make up for the previous period. Investment.
Broken bridge aluminum doors and windows open in many forms, comfortable and durable. There are swing type, push-pull type, inner open inner type, outer open lower hanging type, etc., suitable for public buildings, residential quarters and municipal works; Hardware accessories are durable, user-friendly design of operating handle, beautiful and comfortable, easy to open and flexible, each A use action has been tested, the number of fatigue tests is more than tens of thousands of times, the sliding is easy and free, the sound is mature, the door and window processing technology is mature and perfect, and the high-precision program control machining center is used for production, and the quality is stable.
Broken bridge aluminum alloy is a green building material, recycling economy. In the production process, the aluminum doors and windows of the broken bridge will not only produce harmful materials, but all materials can be recycled and reused. It is a green building material and environmental protection product, which is in line with human sustainable development. In the British green building evaluation standard, the heat-dissipating aluminum alloy profile can get a certain extra point.
The advantages of ordinary aluminum alloy windows are better weather resistance and aging resistance. (Disadvantages) Insulation is not as good as other materials, and the color is only white or tea. The advantages of plastic steel window are good sound insulation, heat insulation, fire resistance, air tightness, water tightness, corrosion resistance, heat preservation and the like. (Disadvantages) After all, it is a PVC plastic profile. After a long time, the surface will turn yellow and the form will be deformed. The service life is 20-30 years. The advantage of broken aluminum doors and windows is that the aluminum material above 1.4 is added with insulation on all the foundations; It also has good sound insulation, heat insulation, fire resistance, air tightness, water tightness, corrosion resistance, Insulation, maintenance-free, etc.; It is a metal aluminum profile that can be used for a long time without changing color. (Disadvantages) The price of aluminum is expensive and the production cost is relatively high.
All products are based on the CE standard, ISO9001, ISO14001 standard.
We also produce aluminum profile which is a raw materials of aluminum window and door. We can ensure that all the aluminum profile has high quality, we can control the quality from the beginning.
| Details of Aluminum Windows and doors | ||||
| Aluminum Profile: | Aluminum alloy: | 6063-T5, thermal-break, non-thermal-break | ||
| Thickness: | 1.4mm-2.0mm, customized | |||
| Surface Treatment: | Customized (Powder coated/ Electrophoresis/ Anodizing etc). | |||
| Color: | White/Champagne/ Grey/Wood grain//Green/Silver | |||
| Style: | (1) Casement window & door (2) sliding window & door | |||
| (3) Folding window & door (4) Awning window | ||||
| (5) Arched window & door (6) Tilt&Sliding window & door | ||||
| (7) Tilt&Turn window & door (8) French Door | ||||

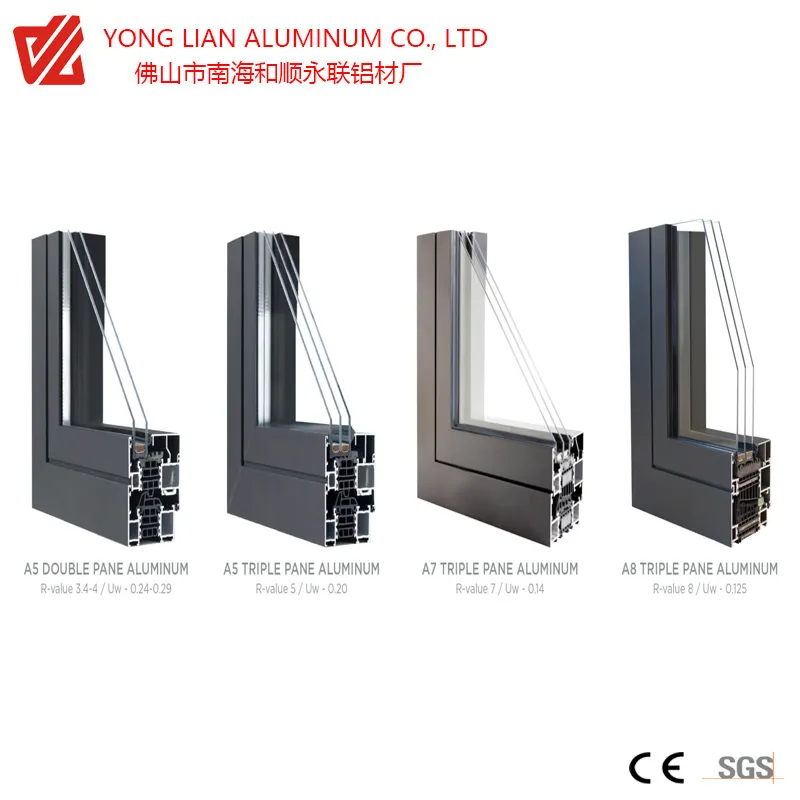

| Glass: | Type: Low-E/Reflective/Tempered/Floated/Coated | |||
| Single glazing: 4/5/6/8/10/12/15/19mm etc | ||||
| Double glazing: Clear, Laminated, Low-E, Tempered | ||||
| 5+12+5mm Clear Glass/6+12+6mm Tinted Glass/5+0.76PVC+5mm Laminated Glass | ||||
| 6+12+6mm Low E Glass/6mm+1.14PVB+6mm+16A etc | ||||
| Triple 5mm+9A+5mm+9A+5mm | ||||
| Hardware: | 1) Chinese Top Brand | |||
| 2) International Famous Brand | ||||
| 3) Flexibly open and firmly riveted | ||||
| Surface Treatment: | Power coating, Anodizing, Over laminate, Electrophoresis | |||
| Size: | Customized | |||
| Color: | Customized | |||
| Sealing: | Ternary ethylene propylene rubber sealing strip | |||
| Other parts: | Mosquito net/Stainless steel screen/Inside blinds/Grid | |||
| Application: | Residential houses, Condominiums, Hotels, Offices, Villa | |||
| Packaging: | 1. Standard export carton package | |||
| 2. Wooden or iron pallets | ||||
| 3. With film outside | ||||
| 4. Customized | ||||
| Guarantee: | 10 years | |||
| Performance Parameter | ||||
| Wind Pressure Performance | ≥5.0 kpa | GB/T7106-2008/9 class | ||
| Air Permeability | ≤0.5 m3/(m. H) | GB/T7107-2008/8 class | ||
| Rain Water Permeability | ≥700 PA | GB/T7108-2008/6 class | ||
| Air Noise Performance | 45dB | GB/T8485-2008/6 class | ||
| Good Insulation Performance | ≤1.0W/(m2. K) | GB/T8484-2008/10 class | ||
| Shading Performance of SC | ≤0.2 | GB/T2680-2008/7 class | ||
The aluminum alloy window is a window made of aluminum alloy building profiles and a fan structure, which is divided into ordinary aluminum alloy doors and windows and broken aluminum alloy doors and windows. The aluminum alloy window has beautiful appearance, sealing and high strength. It is widely used in the field of building engineering. In the home decoration, the aluminum alloy door and window packaging balcony is commonly used.
The surface of the aluminum alloy is oxidized and shiny. The sash frame is large and can be set with a large area of glass, which makes the indoor light bright and bright, enhances the contrast between the interior and exterior, and makes the living room more rich. The aluminum alloy itself is easy to be squeezed, the profile of the profile is accurate, and the machining accuracy is high. Therefore, many owners choose to use aluminum alloy doors and windows in the decoration.
Broken bridge aluminum alloy doors and windows are also called insulated bridge aluminum doors and windows, insulated aluminum alloy doors and windows, broken aluminum doors and windows, broken hot and cold bridge profiles, broken bridge aluminum-plastic composite profiles. It has superior performance than ordinary aluminum alloy profiles. So, do you know why it is called aluminum alloy doors and windows? What is the origin of broken aluminum alloy doors and windows? In order to help everyone further understand why it is called aluminum alloy doors and windows, the following is a detailed introduction to the aluminum alloy doors and windows of the broken bridge, hoping to help friends who have this need!
Why is the broken bridge aluminum alloy door and window "broken bridge aluminum alloy doors and windows" The name "bridge" in the name refers to the "cold and hot bridge" in the material sense, and the "broken" word indicates the action, that is, "put the hot and cold bridge Broken. " Specifically, since the aluminum alloy is a metal, the heat conduction is relatively fast, so when the temperature difference between indoor and outdoor is large, the aluminum alloy can become a "bridge" for transferring heat, and the material is made of aluminum alloy doors and windows, and its heat insulation performance. It is not good. The characteristic performance of aluminum alloy doors and windows of broken bridges is heat insulation. The principle of broken aluminum alloy is to insert heat insulation strips in the middle of aluminum profiles to break the aluminum profiles to form a broken bridge, effectively preventing heat conduction. The thermal conductivity of insulated aluminum alloy doors and windows is 40% to 70% lower than that of non-insulated aluminum alloy doors and windows.
Broken bridge aluminum alloy doors and windows are also called insulated bridge aluminum doors and windows, insulated aluminum alloy doors and windows, broken aluminum doors and windows, broken hot and cold bridge profiles, broken bridge aluminum-plastic composite profiles. It has superior performance than ordinary aluminum alloy profiles. So, do you know why it is called aluminum alloy doors and windows? What is the origin of broken aluminum alloy doors and windows? In order to help everyone further understand why it is called aluminum alloy doors and windows, the following is a detailed introduction to the aluminum alloy doors and windows of the broken bridge, hoping to help friends who have this need!
Why is the broken bridge aluminum alloy door and window "broken bridge aluminum alloy doors and windows" The name "bridge" in the name refers to the "cold and hot bridge" in the material sense, and the "broken" word indicates the action, that is, "put the hot and cold bridge Broken. " Specifically, since the aluminum alloy is a metal, the heat conduction is relatively fast, so when the temperature difference between indoor and outdoor is large, the aluminum alloy can become a "bridge" for transferring heat, and the material is made of aluminum alloy doors and windows, and its heat insulation performance. It is not good. The characteristic performance of aluminum alloy doors and windows of broken bridges is heat insulation. The principle of broken aluminum alloy is to insert heat insulation strips in the middle of aluminum profiles to break the aluminum profiles to form a broken bridge, effectively preventing heat conduction. The thermal conductivity of insulated aluminum alloy doors and windows is 40% to 70% lower than that of non-insulated aluminum alloy doors and windows.
Installation process: Line positioning → aluminum alloy door and window draping installation → anti-corrosion treatment → aluminum alloy door and window installation in place → aluminum alloy window fixing → door and window frame and wall clearance treatment → door and window fan and door and window glass installation → installation hardware accessories.
Line positioning
(1) According to the installation position, size and elevation of the doors and windows in the design drawings, the door and window edges are measured according to the center line of the door and window. In the case of multi-storey or high-rise buildings, the edge of the top and bottom windows and doors shall prevail, and the edge of the door and window shall be LED down by A Line pendant or theodolite, and marked at each door window, and the individual not straight edges shall be chiseled.
(2) The horizontal position of the doors and windows shall be measured by the horizontal line of the floor indoor +50cm, and the height of the window shall be measured downwards, and the elastic line shall be straightened. Each layer must maintain the same height of the window.
Aluminum window draping installation
Fix the draping on the aluminum alloy window according to the requirements of the construction drawings, and ensure that the position is correct and the installation is firm.
Antiseptic treatment
(1) When the anti-corrosion treatment design of the outer surface of the door and window frame is required, it shall be treated according to the design requirements. If the design does not require it, it can be coated with anti-corrosion coating or plastic film to protect the cement mortar from direct contact with the surface of the aluminum alloy door and window, resulting in electrochemical reaction and corrosion of aluminum alloy doors and windows.
(2) When installing aluminum alloy doors and windows, if it is fixed by connecting iron parts, it is preferable to use iron parts for connecting metal parts such as fixing parts and fixing parts. Otherwise, anti-corrosion treatment must be carried out to avoid electrochemical reaction and corrosion of aluminum alloy doors and windows.
Installation of aluminum alloy doors and windows in place
Install aluminum alloy door and window frames according to the planned door and window positioning line. And timely adjust the horizontal, vertical and diagonal length of the door and window frame to meet the quality standards, and then temporarily fixed with wooden wedges.
Fixation of aluminum alloy doors and windows
(1) When the iron parts are pre-buried on the wall, the iron feet of the aluminum alloy doors and windows can be directly welded directly to the pre-embedded iron parts on the wall, and the welding place needs to be rust-proofed.
(2) When there is no embedded iron on the wall, the iron feet of the aluminum alloy doors and windows can be fixed to the wall by metal expansion bolts or plastic expansion bolts.
(3) When there is no embedded iron on the wall, you can use the electric drill to make a hole with a depth of 80mm and a diameter of 6mm on the wall, and use L-shaped 80mm × 50mm 6rmn steel. Apply 108 cement slurry to the long end and punch into the hole. After the 108 cement slurry is finally set, the iron feet of the aluminum alloy doors and windows are welded to the embedded 6 mm steel bars.
Treatment between the gap between the door and window frame and the wall
(1) After the aluminum alloy doors and windows are installed and fixed, the concealed project acceptance should be carried out first. After passing the test, the gap between the door and window frame and the wall should be treated in time according to the design requirements.
(2) If the design is not required, the elastic insulation material or glass wool felt strips may be used to layer the gaps, and the outer surface is left with a 5~8mm deep notch to fill the caulking grease or sealant.
Door and window sash and door and window glass installation
(1) Door and window sash and door and window glass shall be installed after the completion of the decoration of the wall surface of the opening.
(2) Sliding the door and window After the door and window frame is fixed and fixed, the glass door sash is placed in the frame chute as a whole, and the gap with the fan can be adjusted.
(3) Open the doors and windows in the frame and the fan frame to assemble the upper wall, install and fix the glass, then adjust the gap between the frame and the fan, then place the glass into the fan and adjust the position. Finally, insert the sealing strip and Sealant.
(4) The floor spring door should be installed and fixed after the door frame and the ground spring main body are installed in the ground. First insert the glass into the door frame and put it into the frame together, adjust the gap of the frame fan, and finally fill in the sealing strip and sealant of the door leaf glass.
The advantages of broken aluminum alloy doors and windows are also many
Thermal insulation of aluminum alloy doors and windows of broken bridge: The inner and outer frames of the heat-insulating profile are softly combined, the frame is sealed by multiple strips, the sealing is tight, the airtightness and watertight performance are excellent, and the heat preservation performance is superior; The window sash adopts an insulating glass structure. The window is provided with sound insulation, heat insulation, heat preservation and function, which greatly saves the cost of mining and cooling. The heat transfer coefficient K value is detected below 2.23-2.94W/m2·K, and the energy saving effect is remarkable. The energy saving cost of several years is enough to make up for the previous period. Investment.
Broken bridge aluminum doors and windows open in many forms, comfortable and durable. There are swing type, push-pull type, inner open inner type, outer open lower hanging type, etc., suitable for public buildings, residential quarters and municipal works; Hardware accessories are durable, user-friendly design of operating handle, beautiful and comfortable, easy to open and flexible, each A use action has been tested, the number of fatigue tests is more than tens of thousands of times, the sliding is easy and free, the sound is mature, the door and window processing technology is mature and perfect, and the high-precision program control machining center is used for production, and the quality is stable.
Broken bridge aluminum alloy is a green building material, recycling economy. In the production process, the aluminum doors and windows of the broken bridge will not only produce harmful materials, but all materials can be recycled and reused. It is a green building material and environmental protection product, which is in line with human sustainable development. In the British green building evaluation standard, the heat-dissipating aluminum alloy profile can get a certain extra point.
The advantages of ordinary aluminum alloy windows are better weather resistance and aging resistance. (Disadvantages) Insulation is not as good as other materials, and the color is only white or tea. The advantages of plastic steel window are good sound insulation, heat insulation, fire resistance, air tightness, water tightness, corrosion resistance, heat preservation and the like. (Disadvantages) After all, it is a PVC plastic profile. After a long time, the surface will turn yellow and the form will be deformed. The service life is 20-30 years. The advantage of broken aluminum doors and windows is that the aluminum material above 1.4 is added with insulation on all the foundations; It also has good sound insulation, heat insulation, fire resistance, air tightness, water tightness, corrosion resistance, Insulation, maintenance-free, etc.; It is a metal aluminum profile that can be used for a long time without changing color. (Disadvantages) The price of aluminum is expensive and the production cost is relatively high.
